Product Details:
|
| Condition: | New | Power Type: | Diesel Engine |
|---|---|---|---|
| Drilling Depth: | 200m | Drilling Diameter: | 90-450mm |
| Drilling Method: | DTH& Mud Pump Drilling | Rotation Torque: | 4000Nm |
| Rotation Speed: | 0-100 Rpm | Lifting Force: | 8 Ton |
| Rig Engine: | 76 HP | Mud Pump: | BW250 |
| High Light: | water borehole drilling equipment,water well drilling machine |
||
Specification200m Truck Mounted Water Well Drilling Rig Hydraulic Borewell Drilling Rig
JCDRILL Water Well Drill Rig

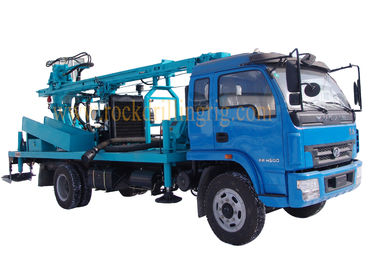

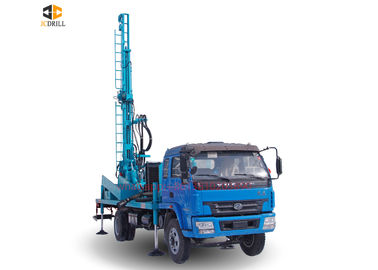

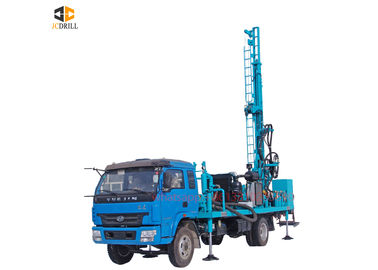

CSD200 Multi-functional truck mounted water well drilling rig is an efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD200 truck mounted drilling rig can drill in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Charactaristic
1. The drilling rig can use both air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 4X2 special crane chassis of different brand truck and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 5400Nm.
6. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7. It can set up a generator which is convenient to welding or illuminate for work at night.
8. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
9. Competitive in price, low cost of maintain.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling type | DTH & Mud rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ90-Φ325 |
| 5 | Hole Depth | m | 210 |
| 6 | Rotation Torque | Nm | 3200-4500 |
| 7 | Rotation Speed | rpm | 0-100 |
| 8 | Drill pipe diameter | mm | 76,89,102,114 |
| 9 | Drill pipe length | mm | 3000 |
| 10 | Max. Lifting force | N | 8000 |
| 11 | Max. Feed Speed | m/min | 18 |
| 12 | Feed Stroke | mm | 3400 |
| Winch | |||
| 13 | Lifting force of hoist | T | 0.8 |
| 14 | Length of steel wire rope(tool winch) | M | 100 |
| Engine | |||
| 15 | Diesel Engine type | CUMMINS | |
| 16 | Rated Horse power | Kw | 93 |
| 17 | Electrical System | V | 24 |
| Compressor Required | |||
| 18 | Compressor Type | Rotary Screw/Movable | |
| 19 | Pressure Required | Mpa | 1.2-3.0 |
| 20 | Air consumption | m³/min | 11-35 |
| Truck | |||
| 21 | Manufacturer | YUEJIN | |
| 22 | Model | E13N2B00098 | |
| 23 | Engine | YC4E140-42 | |
| 24 | Rated Horse power | HP | 140 |
| 25 | Discharge Standard | EU-2 | |
| 26 | Drive type | 4*2 | |
| 27 | Max.Speed | Km/h | 102.9 |
| 28 | Steering wheel | left/right(Optional) | |
| Mud Pump(Optional) | |||
| 29 | Type | Hydraulic | |
| 30 | Model | BW450 | |
| 31 | Stroke | mm | 110 |
| 32 | Displacement | L/Min | 450 |
| 33 | Discharge pressure (Mpa) | Mpa | 2-5 |
| 34 | Suction tube diameter | mm | 89 |
| 35 | Discharge pipe diameter | mm | 51 |
| 36 | Liner Diameter | mm | 80 |
| Dimension | |||
| 37 | Net Weight | T | 15 |
| 38 | Shipping Length | mm | 10600 |
| 39 | Shipping Width | mm | 2400 |
| 40 | Shipping Height | mm | 3050 |
| 41 | Working size(L*W*H) | mm | 11000*2480*2850 |
Packing& Delivery
