210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig

210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig
210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig 210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig 210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig

Large Image :  210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: CSD200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Standard export pachage
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig

Description
Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 15000kg
Warranty: 1year Hole Depth: 210m
Drill Pipe Diameter: 89/114mm Usage: Water Well
Dimension(L*W*H): 11000*2480*2850mm Hole Diameter: 90-300mm
Rotation Torque: 5400nm
High Light:

water well drilling equipment

,

water well drilling machine

Truck mounted 210m Hole Depth Hydraulic Borehole Drilling Machine Water well drilling rig



JCDRILL Water Well Drill Rig

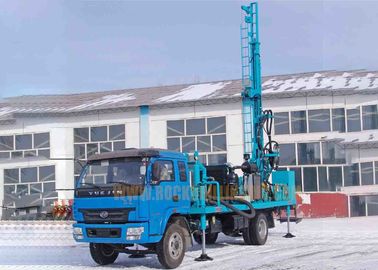

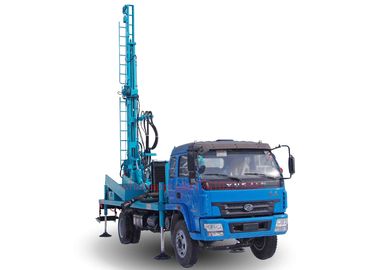

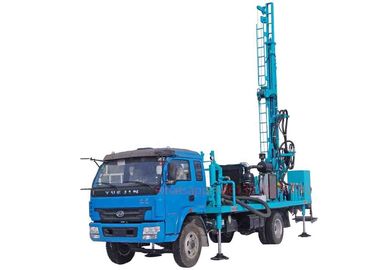

CSD200 Multi-functional truck mounted water well drilling rig is an efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.



CSD200 truck mounted drilling rig can drill in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.



CSD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.



Application

210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig 0



Charactaristic

1. The drilling rig can use both air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 4X2 special crane chassis of different brand truck and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 5400Nm.
6. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7. It can set up a generator which is convenient to welding or illuminate for work at night.
8. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
9. Competitive in price, low cost of maintain

Certification

210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig 1

210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig 2

Delivery

210m Hole Depth Water Well Drilling Equipment Down The Hole Hammer Drill Rig 3



FAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery of China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
