Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth

China Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth supplier
Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth supplier Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth supplier Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth supplier

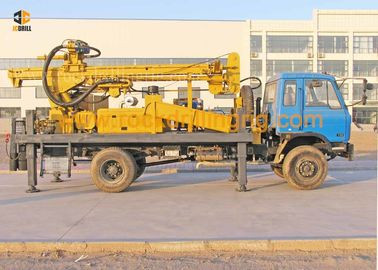

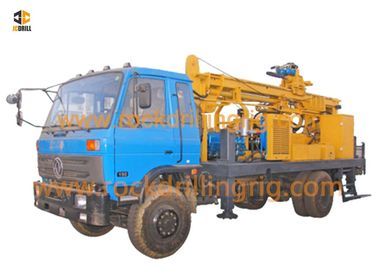

Large Image :  Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001
Model Number: CSD200 4X4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotation
Packaging Details: 40FR Container
Delivery Time: 60 work days
Supply Ability: 2000 set per year
Contact Now
Detailed Product Description
Type: 4 X 4 Truck Mounted Rig Drilling Depth: 200m
Drilling Diameter: 90-325mm Drill Rod Diameter: 76 / 89/ 102/ 114mm
Drill Rod Length: 3000mm Drilling Method: Mud Rotary And Air DTH
Usage: Irrigation, Water Supply Warranty: 1 Year
Color: Blue, Yellow Origin: China

3m Drill Rod DTH Water Well Drilling Rig Machine Mounted On 4 X 4 Truck



Application

CSD200 4x4 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3.The truck chassis adopts the 4X4 special crane chassis of brand Dongfeng and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4.It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW250 (Optional) mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5.The power of drilling rig comes from a Yuchai engine,93kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

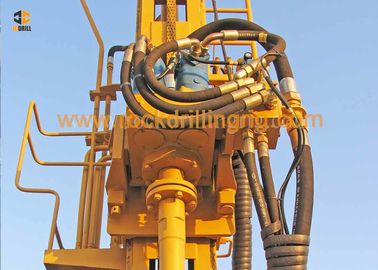

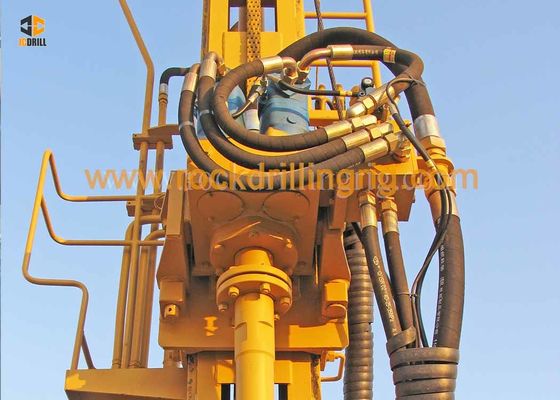

6.The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 3200-4500Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. Competitive in price, low cost of maintain.

Mobile Borehole Drilling Machine 4 X 4 Truck Mounted Rig 200m Drilling Depth

Specification
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Operation   Hydraulic Drill System
4 Hole Diameter mm Φ90—Φ325
5 Hole Depth m 200
6 Rotation Torque Nm 3200 1st Gear
4500 2nd Gear
7 Rotation Speed rpm 0-80 1st Gear
0-100 2nd Gear
8 Drill rod diameter mm 76/89/102/114
9 Drill rod length mm 3000
10 Max. Lifting force N 8000
11 Max. feed speed m/min 18
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 0.8
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 93
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.2—3
21 Air consumption m³/min 11—35
Truck
22 Manufacturer   DONGFENG
23 Model   LGAC2A135G4D52189
24 Engine   CUMMINS ISDE18040
25 Rated Horse power HP 180
26 Discharge Standard   EU-2
27 Drive type   4*2
28 Max.Speed Km/h 102.9
29 Steering wheel   left
Mud Pump
30 Type   Hydraulic
31 Model   BW250
32 Stroke mm 110
33 Displacement L/Min 250
34 Discharge pressure (Mpa) Mpa 2-3
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Hydraulic Welder
38 Mnufacturer   Dynaset
39 Welding current A 60-250
40 Hydraulic Min.oilflow L/min 42
41 Nom/Max Pressure Bar 190/210
42 Voltage V 110/220VDC
43 Power Kw 102
44 L*W*H mm 390*190*230
45 Foam pump   Optional
Generator
46 Generator   Optional
Dimension
46 Net Weight T 14
47 Shipping Length mm 8800
48 Shipping Width mm 2500
49 Shipping Height mm 3500
50 Working size(L*W*H) mm 8900*2000*7147


Service



In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
