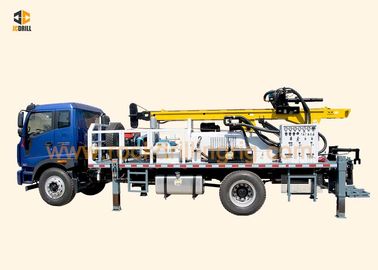

300m Truck Mounted Water Well Drilling Rig Mud And DTH Hydraulic System One Year Warranty

China 300m Truck Mounted Water Well Drilling Rig Mud And DTH Hydraulic System One Year Warranty supplier
300m Truck Mounted Water Well Drilling Rig Mud And DTH Hydraulic System One Year Warranty supplier 300m Truck Mounted Water Well Drilling Rig Mud And DTH Hydraulic System One Year Warranty supplier

Large Image :  300m Truck Mounted Water Well Drilling Rig Mud And DTH Hydraulic System One Year Warranty

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001
Model Number: CSD300 4X2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotation
Packaging Details: 40FR Container
Delivery Time: 60 work days
Supply Ability: 2000 set per year
Contact Now
Detailed Product Description
Type: Middle Truck Mounted Rig Drilling Depth: 300m
Drilling Diameter: 140-450mm Drilling Method: Mud Rotary And Air DTH
Application: Water Well Warranty: One Year
Drill Pipe Length: 3m Drill Pipe Diameter: 89 / 102 /114mm

300m Truck Mounted Water Well Drilling Rig Mud and DTH Hydraulic System



Application

CSD300 4x2 drilling rig is an efficient and versatile drilling and drilling equipment. It is mainly used for drilling wells, agricultural irrigation wells, geothermal air-conditioning holes and other wells. It is especially suitable for water intake projects in mountainous and rock formations. . The efficiency is ten times higher than that of the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive. In particular, it solves the difficulty of drilling the soil air DTH hammer, the construction problem of the rotary rock drill with hard rock layer, gravel and pebble layer, and can work efficiently under various geological structures, achieving the perfect combination of rhinestone and air drilling.

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3.The truck chassis adopts the 4X2 special crane chassis of brand Foton / Dongfeng and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250/BW450(Optional) mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5.The power of drilling rig comes from a Yuchai engine,93kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 3200-4500Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. Competitive in price, low cost of maintain.

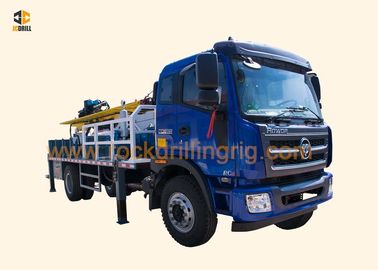

300m Truck Mounted Water Well Drilling Rig Mud And DTH Hydraulic System One Year Warranty

Specification
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140—Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 3200 1st Gear
4500 2nd Gear
7 Rotation Speed rpm 0-80 1st Gear
0-100 2nd Gear
8 Drill pipe diameter mm 76/89/102/114
9 Drill pipe length mm 3000
10 Max. Lifting force N 10000
11 Max. Feed Speed m/min 18
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 0.8
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 93
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.2—3
21 Air consumption m³/min 11—35
Truck
22 Manufacturer   FOTON / DONGFENG
23 Model   E13N2B00098
24 Engine   YC4E140-42
25 Rated Horse power kw 140
26 Discharge Standard   EU-2
27 Drive type   4*2
28 Max.Speed Km/h 102.9
29 Steering wheel   left
Mud Pump
30 Type   Hydraulic
31 Model   BW450/BW250
32 Stroke mm 110
33 Displacement L/Min 450/250
34 Discharge pressure (Mpa) Mpa 2-3
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Hydraulic Welder
38 Mnufacturer   Dynaset
39 Welding current A 60-250
40 Hydraulic Min.oilflow L/min 42
41 Nom/Max Pressure Bar 190/210
42 Voltage V 110/220VDC
43 Power Kw 102
44 L*W*H mm 390*190*230
45 Foam pump   Optional
Generator
46 Generator   Optional
Dimension
46 Net Weight T 16
47 Shipping Length mm 8800
48 Shipping Width mm 2500
49 Shipping Height mm 3500
50 Working size(L*W*H) mm 8900*2000*7147


Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
