Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100

China Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier
Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100 supplier

Large Image :  Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: G100

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $50/set
Packaging Details: according to customers' requirement
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year
Contact Now
Detailed Product Description
Parts Name: Grind Machine Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Hole Drlling

Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100





JCDRILL Grind Machine
Description

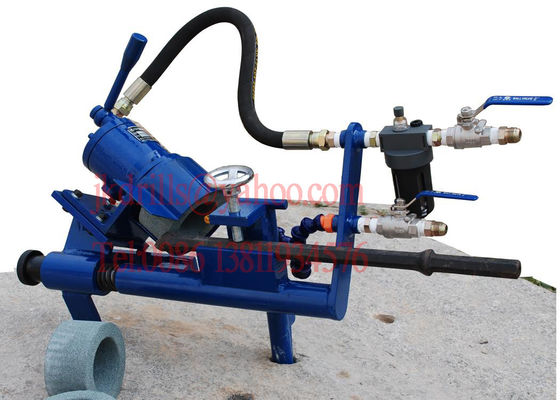

Pneumatic Integral steel rod/chisel bit Grinder G100,the bit grinding machine is Capable for re-grinding of Blunted Drill Steel Rods at an angle of 110o. Since the we subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.

The high efficiency of G100 could quickly grind blunt bits to sharp, tool edge usually 100° and radian 108°.
Application

Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100
Specification

Rate Power 1.5kw
Spindle Speed 4900R.P.M
Working Air Pressure 7bar
Air Requirement 40-60 l/s
Air Hose 12.5mm
Cutting-edge radius 80mm
Dimension: 125X63X32mm
Cutting edge angle 110°
Air Lubrication Mobil DTE24@35drops/min

Business Information

Minimum Order Quantity: N/A
Price: Negotation
Packaging Details: Standard Export Delivery Package
Delivery Time: 7days
Payment Terms: T/T,Western Union
Supply Ability: Based on Detailed Order

Certification
Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100
Delivery
Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100
FAQ
1. Shipping time for an order
     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
   Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4.Other Questions?
   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.
Hole Drlling Pneumatic Integral Steel Rod / Chisel Bit Grinder Machine G100
