Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

JCdrill---The best and Specilized "one-stop selection sourcing platform“ for drilling rig and tools. —— Orlan

—— Orlan

The trailer water drilling rig TWD200 is really good borehole machine,beasy operation,high efficiency and good price. —— Кочетков Юрий

—— Кочетков Юрий

The hydraulic rotary water well drilling rig JKS300,JKCS400 drilling by DTH hammer and mud pump,very good quality and considerate after sales service!

—— Mr. Mohammed Seif

We start use the JK580 DTH rock drilling rig since 2009,now we have 6set working in our customer's mining site,perfect machine with reasonable price.

—— Gocha Rostiashvili

I'm Online Chat Now

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

China Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling supplier
Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling supplier Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling supplier Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling supplier

Large Image :  Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: $15.00 - $50.00/pc
Packaging Details: Wooden box
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 100000pcs/year
Contact Now
Detailed Product Description
Parts Name: Over Burden Bits Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Hole Drlling

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

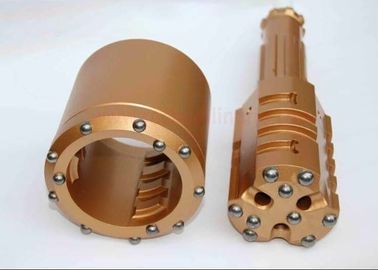

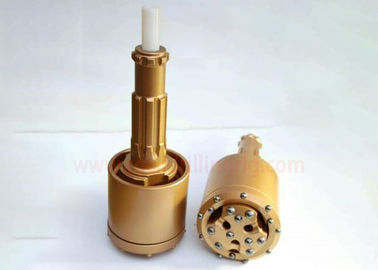

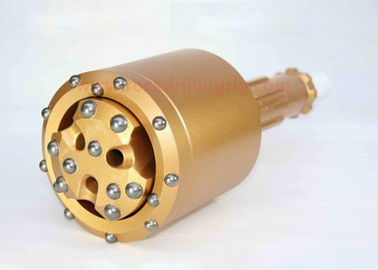

JCDRILL DTH Over Burden Concentric Bits
Description
The eccentric reamer drill is an overburden drilling system designed for conditions where a cased hole is required. Collapsing holes tend to make overburden drilling expensive, with lost drilling equipment and down time.
The eccentric designed bit rotates outward and drills a larger diameter hole than the casing, avoiding cave-ins, wash-outs, and other problems common in normal drilling operations in soft and gravel-type strata or loose rock. Since 90% of the world's overburden drilling is in loose strata, potential utilization is enormous.
After reaching the designated depth, the reamer-bit is retracted by reversing the direction of the rotation and by applying tension on the reamer-bit, which has a taper and will retract into the casing for easy removal of the entire drill-string. This leaves the casing in place for other applications or for removal at a later date. The method is designed for use with flush joint threaded pipe or welded-type casing and provides a bit size for a wide variety of different casing wall thicknesses.





Application

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

Parametre

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

Usage

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling



Minimum Order Quantity: N/A
Price:
Packaging Details: Standard Export Delivery Package
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Certification

Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling
Delivery
Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling
FAQ
1. Shipping time for an order
     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
   Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4.Other Questions?
   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.
Hard Rock DTH Drilling Tools Concentric Overburden Casing Bit Hole Drlling
