Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer

China Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer supplier
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer supplier Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer supplier Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer supplier Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer supplier

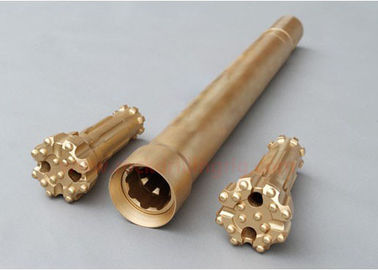

Large Image :  Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: $5.00 - $50.00/pc
Packaging Details: Iron shelf
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year
Contact Now
Detailed Product Description
Parts Name: DTH Drill Bits Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Hole Drlling

Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer


JCDRILL DTH RC Hammer
Description
HRC series reverse circulation DTH Hammer is the latest developed products of our company. It is mainly used for deep exploration drilling and stope ore grade control.
It has the following characteristics:
1.Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.
2.The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.
4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.
5. In different conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
Application

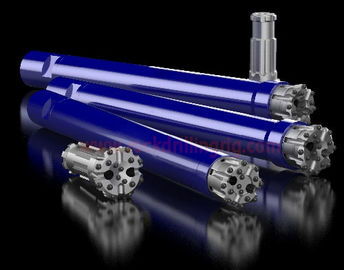

Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
Advantages:
- Advanced hammer designs with high power and air efficiency increases productivity
- Tailored product offering covers all your applications and conditions
- Easy service and maintenance designs reduces machine downtime
- Generic and proprietary shank options give you flexibility and reliability

Hammer inchBits diameterShank
MetricInch
1"64mm-70mm2 1/2"-2 3/4"BR1
2"70mm-95mm2 3/4"-3 3/4"MACH20/BR2
3"90mm-102mm3 1/2"-4"COP32/COP34/MACH303
M30/DHD3.5/BR3
4"105mm-152mm4 1/8"-6"COP44/DHD340/MACH44
SD4/M40/QL40
5"133mm-165mm5 1/4"-6 1/2"COP54/DHD350R/MACH50
SD5/M50/QL50/BR5
6"152mm-254mm4 1/8"-10"COP64/DHD360/SD6
M60/QL60/Bulroc BR6
8"203mm-330mm8"-13"COP84/DHD380/SD8
QL80/M80
10"254mm-380mm10"-15"SD10
NUMA100
12"305mm-508mm12"-20"DHD1120/SD12
NUMA120/NUMA125
To know 12-30 inch bits information, contact us now.


DTH hammers specifications:

HammersBit ShankConnection ThreadSuitable bitWorking pressureAir consumption
1-3" Middle-low pressure
DTH hammers
BR1
BR2
BR3
RD40 box
RD50 box
API 2 3/8" Reg
Φ64-Φ76mm
Φ70-Φ90mm
Φ90-Φ110mm
0.7-1.75Mpa0.7 Mpa4.5 m3/min
1.0 Mpa4 m3/min
1.4 Mpa5 m3/min
3" hammersDHD3.5
COP32/COP34
M30
API 2 3/8"RegΦ90-Φ110mm1.0-1.5Mpa1.0 Mpa4.5 m3/min
1.5 Mpa9 m3/min
4" hammersDHD340
COP44
QL40
SD4
M40
API 2 3/8"RegΦ105-Φ130mm1.0-2.5Mpa1.0 Mpa6 m3/min
1.8 Mpa10 m3/min
2.4 Mpa15 m3/min
5" hammersDHD350
COP54
QL50
SD5
M50
API 2 3/8"Reg
API 3 1/2"Reg
Φ130-Φ156mm1.0-2.5Mpa1.0 Mpa9 m3/min
1.8 Mpa15 m3/min
2.4 Mpa23 m3/min
6" hammersDHD360
COP64
QL60
SD6
M60
API 3 1/2"RegΦ152-Φ203mm1.0-2.5Mpa1.0 Mpa10 m3/min
1.8 Mpa20 m3/min
2.4 Mpa28.5 m3/min
8" hammersDHD380
COP84
QL80
SD8
M80
API 4 1/2"RegΦ200-Φ279mm1.0-2.5Mpa1.0Mpa15m3/min
1.8Mpa26m3/min
2.4Mpa34m3/min
10" hammersSD10
NUMA100
API 6 5/8"RegΦ254-Φ330mm1.0-2.5Mpa1.0Mpa22m3/min
1.8Mpa40m3/min
2.4Mpa55m3/min
12" hammersDHD1120
SD12
NUMA120
NUMA125
API 6 5/8"RegΦ305-Φ381mm1.0-2.5Mpa1.0Mpa30m3/min
1.8Mpa56m3/min
2.4Mpa78m3/min

If you need more details,please feel free let me know by email:sales3@rockdrillingrig.com.
Business Information

Minimum Order Quantity:N/A
Price:Negotation
Packaging Details:Standard Export Delivery Package
Delivery Time:7days
Payment Terms:T/T,Western Union
Supply Ability:Based on Detailed Order

Certification
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
Delivery
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
FAQ
1. Shipping time for an order
     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
   Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4.Other Questions?
   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.
Down The Hole DTH Drilling Tools RC Drill Hammer Reverse Circulation Hammer
