Product Details:
|
| Parts Name: | Rock Drill Bits | Material: | Carton Steel+Tungsten Carbide |
|---|---|---|---|
| Application: | Mining, Blasting,road Construction Hole Drilling | Processing Type: | Forging |
| Brand: | JCDRILL | Diameter: | 33-152mm |
| Other Model: | R22 R25 R32 T45 T51 ST58 ST68ect. | Usage: | Or Drifting Tunneling Bench Drilling |
| Mining Object: | Granite, Marble, Sandstone,limestone | Carbide Shape: | Spherical, Ballistic |
| High Light: | button drill bit,tapered drill bits,rock drill head |
||

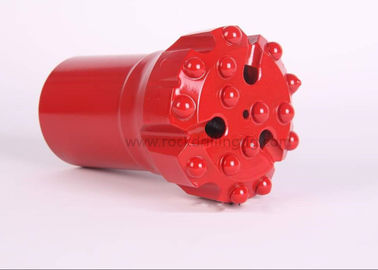

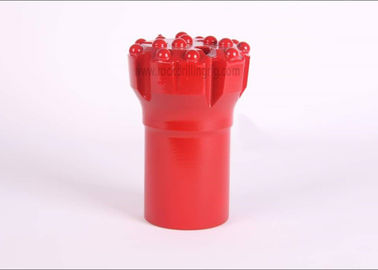

JCDRILL Thread Button Drill Bit
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
A: Drifting and Tunneling
thread: R25, R28, R32
diameter: 33mm-76mm
B: Bench Drilling
thread: R3212, R32, HL38, T38, T45, T51, T60
diameter: 48mm-152mm
C: Tube Drilling
thread: ST58, ST68
diameter: 89mm-152mm
OEM and ODM--- We can design and manufacture according to customers's samples or drawings of the Bit Dia., No. Of air/water holes, carbide button shape and the face shape.
Super Quality--- Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Global Reputation--- The drill button bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. Our clients
Are all over the world, like Germany, Spain, Italy, Russia, Japan, India, Australia, Mexico, Colombia, Brazil,
Chile, South Africa...etc. We have very good reputation worldwide!
Specification
T51Thread Bit
| Bit Dia | Tip size(mm) | No. of flushing holes | Weight | ||
| mm | (kg) | ||||
| Gauge | Front | Side | Front | ||
| 89 | 8*12 | 5*12 | 2 | 2 | 4.9 |
| 102 | 8*13 | 6*12 | 2 | 2 | 5.8 |
| 115 | 8*14 | 6*13 | 2 | 2 | 6.8 |
| 127 | 8*14 | 6*14 | 2 | 2 | 7.5 |
| 89 | 9*10 | 6*11 | 0 | 3 | 4.6 |
| 102 | 9*12 | 6*12 | 0 | 3 | 5.9 |
| 115 | 9*12 | 9*12 | 0 | 3 | 6.6 |
| 127 | 9*13 | 9*13 | 0 | 3 | 8.4 |
| 152 | 9*14 | 9*14 | 0 | 3 | 11.1 |
| 89 | 6*14 | 4*12 | 0 | 3 | 4.5 |
| 102 | 8*13 | 6*12 | 0 | 4 | 5.7 |
| 115 | 8*13 | 6*13 | 0 | 4 | 6.8 |
| 127 | 8*14 | 7*13 | 0 | 4 | 7.5 |
| 140 | 8*16 | 6*16 | 0 | 4 | 14.4 |
| 152 | 8*16 | 7*16 | 0 | 4 | 15.1 |
| 89 | 8*12 | 5*12 | 2 | 2 | 5.1 |
| 102 | 8*13 | 6*12 | 2 | 2 | 7.1 |
| 115 | 8*14 | 6*13 | 2 | 2 | 10.5 |
| 127 | 8*14 | 6*14 | 2 | 2 | 12.5 |
| 89 | 8*12 | 6*11 | 0 | 4 | 5.3 |
| 102 | 8*13 | 6*12 | 0 | 4 | 7.4 |
| 115 | 8*13 | 6*13 | 0 | 4 | 10.2 |
| 127 | 8*14 | 7*13 | 0 | 4 | 12 |
Certification
Delivery
FAQ
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
