7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing
7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing

Large Image :  7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: API,ISO,CE
Model Number: 32,34,36,38,40mm-4,6,7,8,9buttons-7°,11°,12°
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: $5.00 - $20.00/pc
Packaging Details: Plastic box or wooden box
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000m/year

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing

Description
Parts Name: Rock Drill Bits Material: Carton Steel+Tungsten Carbide
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Cold Pressing
Other Name: Button Bits Machine Type: Drilling Tool
Length: Long Skirt And Short Skirt Brand: JCDRILL
Taper: 7、11、12 Diameter: 28,30,32,34,36,38,40,42
High Light:

button drill bit

,

tapered drill bits

,

rock drill head

Factory price 32mm, 34mm,36mm,38mm,40mm - 7 / 11 / 12 degree tapered rock drill button bit with 9 carbide



JCDRILL Tapered Button Bit

Product Description

JCDRILL tapered bits are ideal for short hole drill & blast, as well as roof bolting applications, as we are Chinese leading manufacture of rock drilling bits,we have rich experience in reseraching and producing .Our products are sold to many countries of the world and gained lots of trust and praise.Why our products are so popular?

1.We use the most high performance material for every order according to customers' requirements.

2.We know most market informations worldwide ,so we can recommend clients the most suitable product.

3.We has the lowest cost and we sell directly to customer from factory,so our price is the most advantage in Chinese market.

4.All our customer can enjoy our VIP service before and after sales ,that is also why more and more customer choose us.

5.With our products,you will have more advantage in your market,so JCDRILL is the best choise.

Tapered button bit diameter:28mm,30mm,32mm,34mm,36mm,38mm,40mm etc..

Tapered button bit degree: 7°, 11°, 12° etc..

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 0

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 1

Description Diameter Length No. of button Weight
Taper Angle=7°,11°,12°; Socket inside=28mm-45mm mm mm pcs kg
28 50 4 0.2
29 50 4 5 6 7 0.2
30 50 80 5 6 7 8 0.2 0.3
32 50 55 71 80 6 7 8 9 0.2 0.22 0.3
33 50 55 71 80 6 7 9 0.2 0.3 0.36
34 50 55 7 8 0.22 0.3
35 55 71 80 4 5 6 7 0.22 0.3 0.37
36 50 55 7 0.3 0.35
37 55 4 6 7 0.3
38 50 55 4 6 7 0.25 0.35
40 50 55 7 0.35
41 50 55 71 4 5 0.35
42 50 6 7 0.4
45 50 55 71 6 7 8 9 0.5

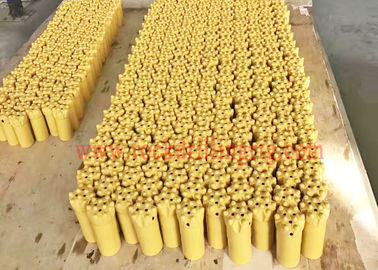

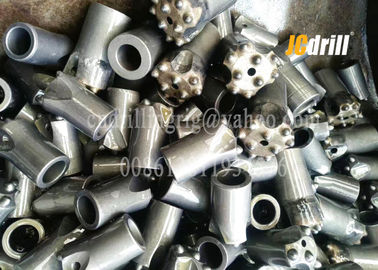

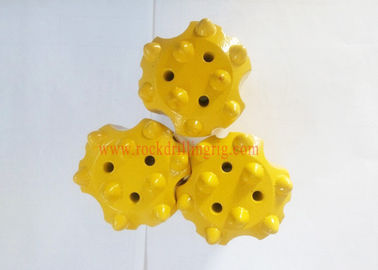

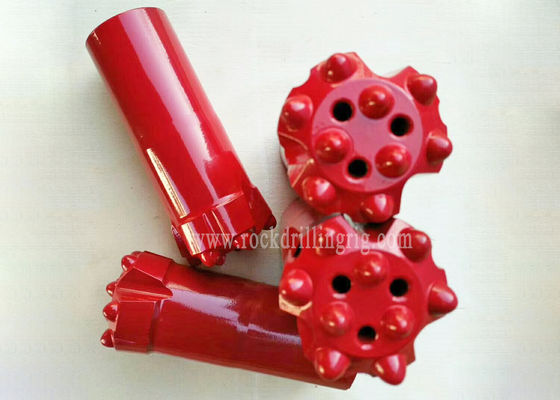

Product Show

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 2

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 3

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 4

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 5

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 6

Specification

7° bits

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 7

11° bits

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 8

12° bits

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 9

Advantage

Comparing with taper chisel and cross bits, button bits have higher technology, much longer primary drilling time and higher drilling efficiency. According to the tungsten carbide insert, button bits can be divided into types of hemispherical, conical and parabolic button, etc.
Button bits with hemispherical button is for high bearing capacity and abrasive resistance while conical button and parabolic button are for high drilling speed and low abrasive resistance.

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 10







Certification

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 11

Company

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 12

Delivery
7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 13

FAQ

1. Shipping time for an order

     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.

2. Quality Control

   Strict inspection and testing for every order before shipping out .

3. How to order

   Head diameter + buttons number + The degree.

4.How can we trust your company?

   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.

5.Other Questions?

   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.

7 / 11 / 12 Degree Tapered Drill Bits , Industrial Drill Bits Cold Pressing 14
