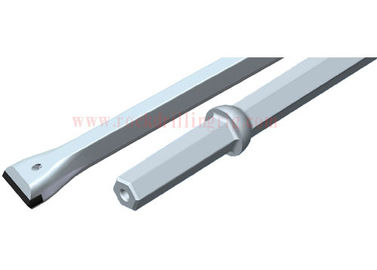

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting
Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting

Large Image :  Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: API,ISO,CE
Model Number: All SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: $5.00 - $20.00/pc
Packaging Details: wooden box
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000m/year

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting

Description
Parts Name: Integral Drill Rod Material: Carbon Steel
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Forging And Casting
Other Name: Integral Drill Steels Machine Type: Drilling Tool
Thread Protector: Plastic, Metal, Rubber Shank: H22x108mm
Shank2: H19x108mm Diameter: 20-42mm
Length: 400mm To 6000mm Hole Diameter: 19mm To 41mm
High Light:

tapered drill rod

,

rock drill steel

,

integral drill rods

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting



JCDRILL Integral Drill Rods

Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.

Effective Length:400-4000mm,400-9600mm,800-6400mm.

Shank Style:H19*108mm,H22*108mm,H25*159mm.

Head Diameter:23-35mm,26-41mm,35-42mm

Characteristic

1. The Integral rods strong energy of single impact and the low energy consumption in rock crushing;

2. The weight ratio of Piston and Bit almost reached 1:1 to provide long effective acting time, which

leads to the improved efficiency in rock crushing and the extended service life of the drilling tool;

3. The Integral rods good performance in central air exhaust and cuttings discharge, which reduces

the repeated crushing of rock;

4. A check valve device is available to drill holes under water.

The HR Series DTH Hammer, an ideal drilling tool, is widely used in such industries relating to

energy,transportation, metallurgy, building etc.

5.Tapered Button bits(7,11,12Degree), Diameters:32mm-50mm, Tips type:4tips or 7tips or 8tips,

Button or Ballistic tips

6.Thread button bits, Diameters from 45mm-102mm, Thread Type:R32,T38,T45,T51 Thread Tip

type: Button or Ballistic tips, Face type:Flat face or drop center

Shank Style Effective Length Head Diameter
mm foot/inch mm inch
Hex19 × 108mm 400 ~ 4,000 1’ 4” ~ 13’ 1” 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1’ 4” ~ 31’ 6” 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1’ 11 5/8” ~ 21’ 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2’ 7” ~ 21’ 35 ~ 42 1 3/8 ~ 1 21/32

Note: The above table only indicates the most commonly used and produced products range, all of them are produced with chisel bit type, for cross bits type and other special requested products, please contact us with your requested details.

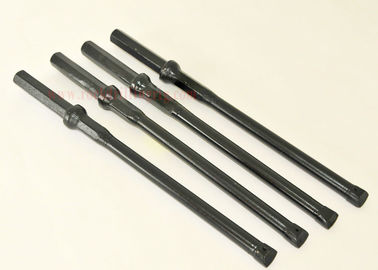

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting 0

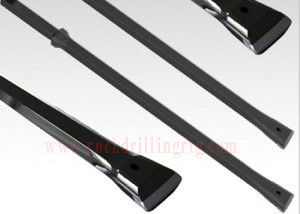

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting 1

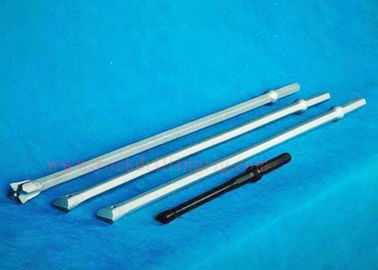

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting 2

Specification

Shank Style Effective Length Head Diameter
mm foot/inch mm inch
Hex19 × 108mm 400 ~ 4,000 1’ 4” ~ 13’ 1” 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1’ 4” ~ 31’ 6” 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1’ 11 5/8” ~ 21’ 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2’ 7” ~ 21’ 35 ~ 42 1 3/8 ~ 1 21/32

Certification

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting 3

Service

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Warranty Spare parts
Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition. JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting 4

FAQ

1. Shipping time for an order

     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.

2. Quality Control

   Strict inspection and testing for every order before shipping out .

3. How to order

   Shank Style + rod Length + Head Diameter.

4.How can we trust your company?

   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.

Carbon Steel Integral Rock Drill Rods Tapered Drill Rod For Mining / Blasting 5
