JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology

China JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology supplier
JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology supplier JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology supplier JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology supplier JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology supplier JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology supplier

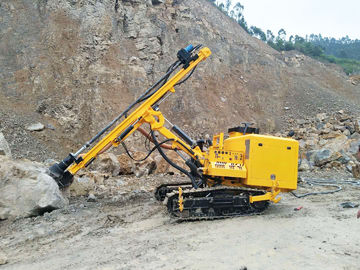

Large Image :  JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JC860

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 7-20days
Payment Terms: Western Union, MoneyGram, D/P
Supply Ability: 20/month
Contact Now
Detailed Product Description
Type: Water Well Drilling Rig,Rock Blasting Drilling Rig Usage: Water Well,Rock Drilling
Condition: New Product Name: Crawler Rock Drilling Rig Machine
Voltage: Customized Color: Customized

JC860 Rock blasting drilling rig with DTH technology

Introducation
JC860 hydraulic down-hole drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate. This drill is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight.JC860 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.
Characteristics
1. The Rugged track was driven by hydraulic motor with high traveling ability.
2. The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.
3. The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.
4. The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.
5. The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.
6. The carriage with rollers provides for minimal wear to the drill guide.
7. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.
8. The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.
9. The special compensation device makes a full protection of drill rod threads.

Specification

Drilling Specification
1 Rock Hardness F=6-20
2 Hole Diameter mm 90-152
3 Hole Depth m 40
4 Drilling Rod Diameter mm 60,76,89
Rotary Head
5 Rotation Torque Nm 3300
6 Rotation Speed(Normal and Fast) rpm 0-82/0-112
Feeding System
7 Max. Feed force KN 25
8 Max. Lifting force KN 30
9 Max. Feed Speed M/min 15
10 Max. Lifting Speed M/min 15
Boom&Guide
11 Max Swing of Boom ° 45° left / 45° right
12 Max Dump of Boom ° up60 down20
13 Max Swing of Guide ° 30(L) / 91(R) or91(L) / 30(R)
14 Max Dump of Guide ° 180
15 Feed Stroke m 3
Engine
16 Manufacturer   YUCHAI
17 Model
18 Rated Horse power Kw 63
19 Electrical System 24 Volt
20 Cylinder   4
Air Compressor demand
21 Air Consumption M³/min Φ≤115 11.3m2/min(1.4 Mpa) Φ≤140 13m2/min(1.4 Mpa)
Φ≤152 17m2/min(1.4 Mpa)
Φ≤165 21m2/min(2.4 Mpa)
22 Compressor Type Rotary Screw/Movable
23 Compressor Pressure Required Mpa ≥1.4
General Specification
24 Max. Travel Speed(Slow/Fast) Km/h 2/3
25 Gradeability ° 24
26 Grouser Width mm 324
27 Net Weight kgs 5500
28 Shipping Length mm 6000
29 Shipping Width mm 2150
30 Shipping Height mm 2500
31 Ground Clearance mm 252
32 Guide Extension mm 1200
Cooling System
33 Volume of Flow L/Min 200
34 Rated Pressure Mpa 1.6
Dust Collector
35 WET   Optional
36 DRY   Optional

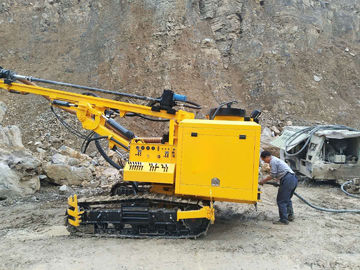

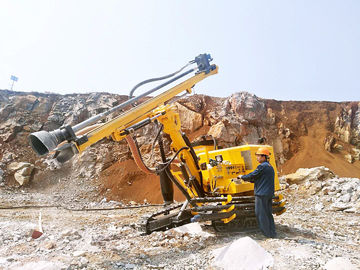

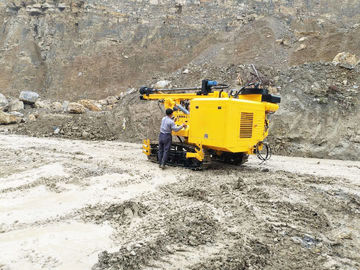

JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology

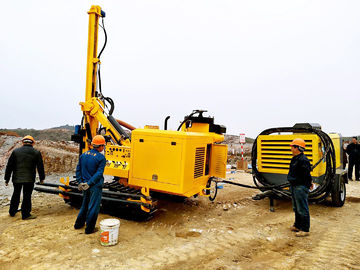

Shipment&Loading
JC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH TechnologyJC860 Blasting Rock Drilling Rig Hydraulic Down Hole Drill With DTH Technology
