High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling

China High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling supplier
High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling supplier High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling supplier High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling supplier High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling supplier

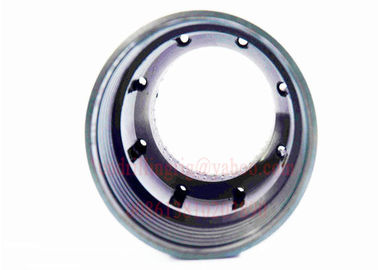

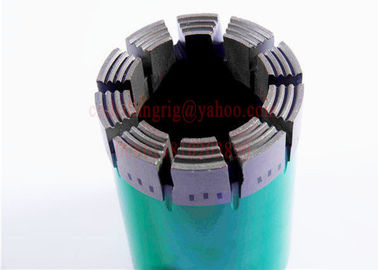

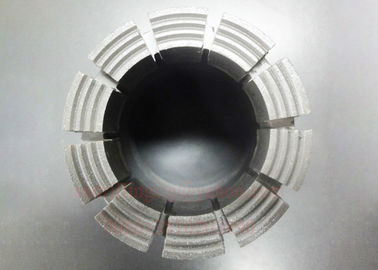

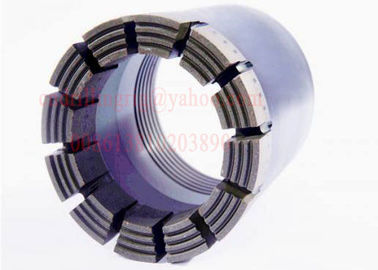

Large Image :  High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: HQ3

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year
Contact Now
Detailed Product Description
Material: Synthetic Diamond, Natural Diamond Available Size: Q Series, T2 Series, T6 Series
Usage: Mining Exploration Diamond Drilling Crown Profile: Standard
Waterways: Standard /Face Discharge /Turbo /Spiral Thread: DCDMA Standard
Color: Black Applicaion: All Conventional And Wireline Core Barrel

Imp Diamond Core Bit Geological Rock Drilling Bits NQ NQ3 NQ2 NMLC



Characteristics



We supply A-Gauge impregnated core bit:AQ, AW, AGM;

B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;

N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;

H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;

P-gauge impregnated core drilling bit:PQ, PQ3;

TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;

T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.



1. Greater resistance to wear in most formations, particularly in the extremely hard rock formation.
2. Less sensitive to abuse, rough handling and improper use.
3. Self sharpening owing to the erosion of matrix and the diamonds.
4. Synthetic diamonds of high quality which are distributed evenly throughout the matrix.
5. Efficient cutting function provided by fresh, sharp diamonds continually.

Application

1. Impregnated Diamond Core Bits

are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the "JCDRILL" contains a uniform distribution of these crystal that are embedded in a powdered metal bond.

2. Surface-Set diamond bits

are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.



High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration DrillingSpecification

Dimensions of Core Bits

Q Series

AQ, BQ, NQ, NQ2,NQ3,HQ, HQ2,HQ3,PQ,PQ2,PQ3

T, TT, T2&TB Series

T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 Core line, T2-86, T2-86 Core line, T2-101,T2-101Core line

T6 Series

T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

B Series (ISO3552-1)

B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

WF Series:

HWF, PWF, SWF, UWF, ZWF

WT Series:

RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)

WG Series:

EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)

WM Series:

EWM, AWM, BWM, NWM

N Guage Core Bits

WLN, WLN2, WLN3, NMLC, NWG NX, NWM, NWT, TNW

H Gauge Core Bits

WLH, WLH-3.830, WLH-3.895, WLH3, WLHTT, HMLC, HWF-long, HWM,HWT

Packing& Delivery                                                                                                                                        ​

High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling

Service

High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​

High Speed Impregnated Diamond Core Drill Bit For Rock Mining Exploration Drilling
