Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity

China Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity supplier
Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity supplier Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity supplier Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity supplier Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity supplier

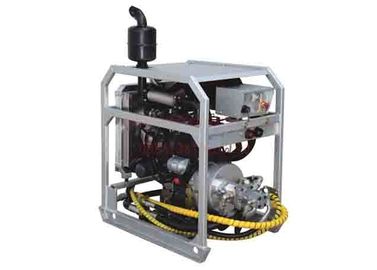

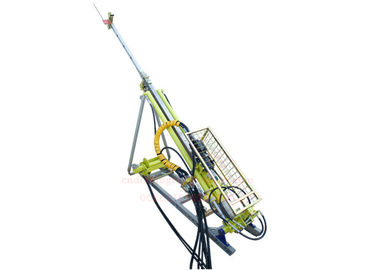

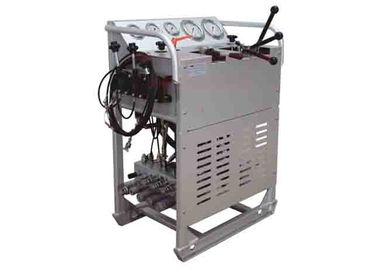

Large Image :  Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: EP600

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: 2Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000Set
Contact Now
Detailed Product Description
Type: Core Drilling Rig Dill Depth Capacity: 600M
Hole Diameter: 96/75.7/60mm Core Diameter: 63.5/56/42mm
Drill Angle: 45°-90° Hydraulic System: 21MPa/max 54L/min Water Cooler
Max Rotation Toque: 650NM Weight: 513kg
Module Quantity: 4pcs Application: Mining
Engine: 3*KUBOTA 23.5KW Pull Back Capacity: 30KN
Heaviest Parts: 180kgs Gross Weight: 1150 KG

Portable Hydraulic Core Drilling Rig 50KN push force 1150 kg 600m drilling depth capacity EP600



Application

EP600 is a brand product and top seller, With its high efficiency and easy assembling capability, it has been widely used in mineral exploration, infrastructure construction, hydraulic and hydropower project,tunnel exploration and geological investigation. It works particularly well in areas with complex geological characteristics such as mountainous region, forest and plateau. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 600 meters.

Characteristics

1. It is equipped with an original and customized and manual Parker multi-way reversing valve to ensure precise control.
2. Its hydraulic system is highly integrated and reliable.
3. It is the preferable type of drilling rig, enjoying leading market share for many years.

Key Characteristics

1. Lightweight

Modulized design with the heaviest module weighing only 180kg, able to be carried by only four persons.

Masts rig with the capacity of drilling from an angle of 45 to 90 degree. No tower is needed.

Lightweight machine with 80% of the framework being made of high-strength aluminum alloy materials.

2. Fast

Fast transportation-No need for road and infrastructure construction.

Fast relocation-Only 2 hours required for the next hole.

Fast penetration-3 times higher than vertical rig with a maximum daily penetration of 150 meters and an

average daily penetration of 70 meters.

3. Reliable

All key parts are from the global leading brands, powerful, stable and reliable.

Integrated hydraulic system with no worries of leakage and malfunction.

Unique mud system and special mud materials to increase drilling efficiency and reduce accidents.

Specification

Capacity

Drill depth capacity

HQ/NTW/BTW

Rod length 1.5 m

(HQ/NTW/BTW)

100/300/600m
Hole Diameter 96/75.7/60mm
Core Diameter 63.5/56/42mm
Engine power Japan KUBOTA 3X23.5kw/3000rpm
Hydraulic system Maximum pressure 21Mpa/max Maximum flow160L/min Water cooled

Top drive rotation head

Maximum toque 650NM
Maximum rotation speed 1300rpm
Feed travel (Cylinder drive) 1.83m
Pull/thrust 50KN/30KN

Winch

Average speed 150m/min
Lift 700kg
Were Diameter/Accommodation 5mm/650m

Mast

5m;Height
Drill Angle 45°-90°

Size and weight

Platform area/Module quantity 4m X 4m / 12PCS
Heaviest module/Gross 180kg / 1150kg

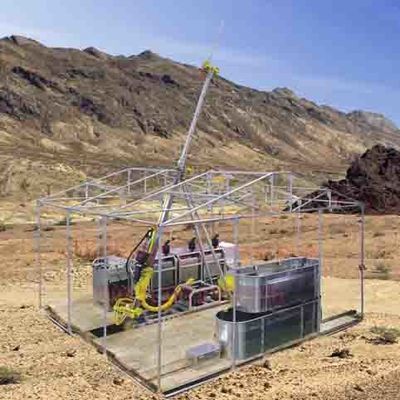

Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth CapacityCustomer case

Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity

Hydraulic Diamond Core Drilling Equipment High Efficiency 600M Depth Capacity

Service

High Performance Diamond Core Drill Rig For Geology / Mineral Exploration Core Drilling XY-44A

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
