100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig

China 100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig supplier
100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig supplier 100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig supplier 100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig supplier

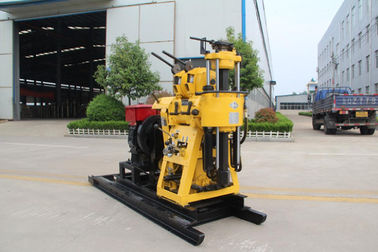

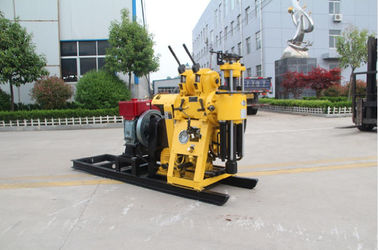

Large Image :  100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: XY-100

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Model Number: XY-100 Drilling Depth: 0-100m
Drilling Diameter: 75mm Drill Pipe Length: 4.2m
Usage: Mining Exploration Drilling Methold: Mud Drilling
Max Spindle Speed: 570rpm Engine Power: 8.8kw
Pull Back Capacity: 15Kn Mud Pump: BW250/BW160
Warranty: 1year

XY-100 multifunctional 75mm diameter mining soil exploration water well 100m drilling machine

Application



XY-100 Drilling Rig is a multi-purpose drilling machine for mining exploration, drilling engineering of water well and geothermal installation system



1. Drilling construction for high-rise building, highway, railway, bridge, port, harbor work, dam and tunnel

2. Small-diameter hole foundation piling drilling

3. Solid mineral exploration

4. Anchoring engineering for battered slope

5. Geothermal pipe-installing for heat pump



Characteristics

a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque

100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling RigSpecification
Specification
Drill depth 100m
Hole diameter 42-75mm
Drill rod diameter 42mm
Angle range 90-75
Dimensions(L*W*H) 1640 X 1030 X 1440(mm)
Weight(without power unit) 500kg
Swivel Head
Spindle speed(3-speed) 142, 285, 570 r/min
Spindle stroke 450mm
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Hoist
Max lifting capacity(single rope) 10KN
Wireline diameter 9.3mm
Wireline capability 27m
Water Pump
Displacement pressure max (electric) 95(77)L/min
Working pressure max 1.2Mpa
Continuous work pressure 0.7Mpa
Suction pipe diameter 32mm
Drain pipe diameter 25mm
Power(Diesel engine or motor)
Model(diesel engine) S1100A2
Rated power 8.8KW
Rated speed 1800r/min
Model(motor) Y132M-4
Rated power 7.5KW
Rated speed 1440r/min

Packing& Delivery

100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig 100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig

Service

100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​

100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig

100m Multi Purpose Hydraulic Core Drilling Machine , Water Well Drilling Rig
