Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor

Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor
Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor

Large Image :  Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: HG1200-25
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: standard export transportation package
Delivery Time: 2Weeks
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 2000Set/Year

Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor

Description
Model Number: HG1200-25 Type: Portable/screw
Power Type: Diesel Engine/electric Application: Water Well Drilling/mining Drilling
Apacity Control: 0~100% Stepless Speed Regulation F30low: 30m3/min,1200CFM
Pressure: 25bar Color: Yellow
High Light:

diesel engine air compressor

,

atlas copco portable air compressor

Double Flighted Screw Diesel Engine Air Compressor , 40 m3/min Portable Industrial Air Compressors



Application

Portable Screw Air Compressors (Diesel power series)

Portable Screw Air Compressors (Diesel power series) are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others.

Our Portable Screw Air Compressors (Diesel power series) are highly efficient and reliable with a full range of selections. The power range falls between 37 kW to 300 kW, the displacement covers up to 40 m3/min, and the discharge pressure amounts up to 2.5 MPa.

Characteristics

1. Compressor: With our patented large diameter, the master engine is directly connected to the diesel engine through highly flexible coupling. Without overdrive gear, the master engine rotates in parallel with the diesel engine, resulting in higher efficiency, better reliability, and longer service.

2. Diesel engine: Diesel engines under such domestic and overseas brands as Cummins and Yuchai comply with the national Tier 2 motor vehicle emission standards. These diesel engines have strong impetus with a low level of fuel consumption. They are also covered under the national aftersales network, so users may quickly access complete services.

3. The air capacity control system is simple and reliable. Based on the size of the air capacity, air injection, as well as the automated diesel accelerator, can be automatically adjusted from 0% to 100%. As a result, diesel oil consumption can be optimized.

4. With an intelligence microcomputer in place, many types of operating data can be effectively monitored, including discharge pressure, discharge temperature, diesel rotational speed, oil pressure, water temperature, and oil capacity. In addition, it is built with an automated alarm system and protective shutdown mechanism.

5. With multilevel air filters, our products can operate in a dusty working environment. Our multilevel fuel filters are also built to accommodate the current oil quality in the domestic market. Featuring an oil and water cooler with an ultra-high capacity, our compressors are also suitable for environments with a high temperature or high pressure.

6. With vast maintenance and repair space, all components and parts that require maintenance are completely accessible, including maintenance work on air filters, oil filters, fuel tanks, batteries, and oil coolers, thus reducing shutdown time.

7. Despite adverse topographic conditions, our products can be flexible and portable. Each compressor is equipped with a hanging ring for safe loading and transporting purposes.

Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor 0

Specification

Model Unit HG800-20 HG950-20 HG1200-25
Type Double-Flighted Screw/Portable/Oil cooler
Nominal volume flow m3/min 22 22.5 30
Rated Discharge Pressure bar 20 14 25
Air Tank Capacity L 211 211 260
Lubricant Capacity L 137 137 145
Manufacturer   CUMMINS CUMMINS
Type   6LTAA8.9-C360 6LTAA8.9-C360 NTA855-C450
Cylinder   6 6 6
Rated Output Power KW 265 265 336
Working Speed rpm 2200 2200 2100
No Load Speed rpm 1400 1400 1400
Lubricating oil Capacity L 24 24 43
Coolant Volume L 60 60 75
Battery   6-QW-135MFx4 6-QW-135MFx4 6-QW-135MFx4
Fuel Tank Capacity L 550 550 700
Machine Size mm 4385x2290x2530 4385x2290x2530 4750x2450x3020
Weight Kgs 5500 5500 6500
Q'ty & Spe of air supply valve   1-G2'', 1-G1''

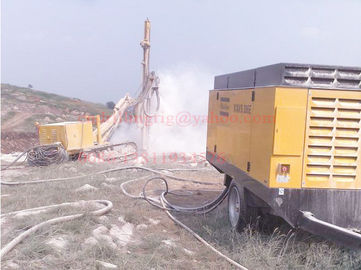

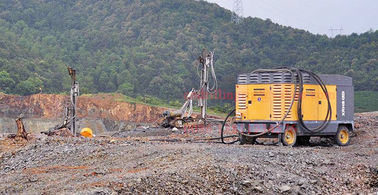

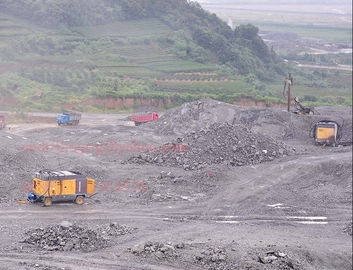

Customer case

Double Flighted Diesel Engine Air Compressor , Mining Drilling Screw Air Compressor 1

Service

12'' High Pressure DTH hammer for fundation,construction and borehole drilling ,305-445mm hole range

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
