|Model Number:||TWD200||Drilling Depth:||0-200m|
|Drilling Diameter:||254mm||Drill Pipe Length:||2/3m|
|Usage:||Water Well Drilling||Drilling Methold:||DTH Drilling & Mud Drilling|
|Rotation Speed:||0-80rpm||Engine Power:||22HP|
|Drill Pipe:||76/89mm||Mud Pump:||BW250|
|Warranty:||1year||Pull Back Capacity:||8.5ton|

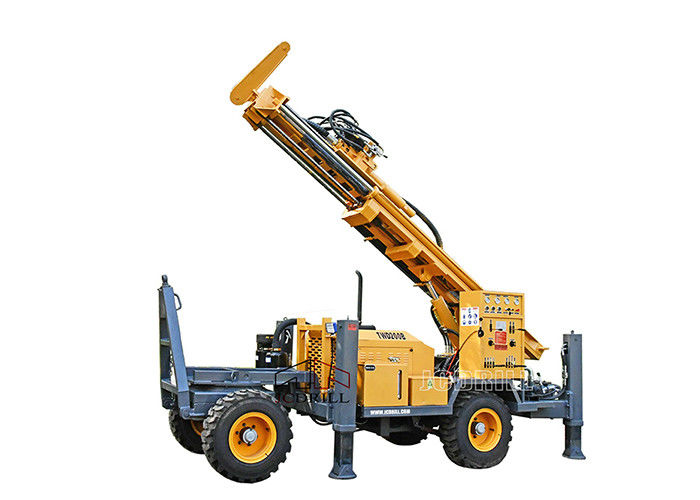

TWD200 trailer mounted water well drilling rig, drilling by air compressor and mud pump max.200m,254mm
Table to handle water well drilling for NGO's and private customers. In most cases where boreholes are drilled in africa it is to install handpumps or solar pumps with a size smaller than 6" .For that reason on mud rotary holes we needed a 8" capacity and on DTH a 6" capacity. This is big enough to install most water pumps.The rig must be able to handle 6" PVC casing instalations.
Uses proven technology like the deutz F3L912 engine and even after long periods of drilling you can still keep your hand on the hydraulic tank.We have desided to use roquete valves,it main parts use world famous brand such as USA imported high torque Eaton motor,Italy imported Hydro-control hydraulic valve,Germany imported KTR coupling and USA Vickers hydraulic pump.
This rig uses 89mm drill pipes with 2 and 3/8 API Internal Flush threading. That reduces the friction in the case of mud rotary drilling as the internal joint diameter is 44mm.The drill tower is telescopic and uses earthalite blocks to reduce friction and is directly connected on the feed cylinder.The drill head is powered by a Eaton motor drive with gear box produce with 2600 Nm torque.So if you want a quality product that can drill upto 200mm holes.
The TWD200 drilling for groundwater can use air, foam or mud rotary for percussive drilling according to different textures.
It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.
In particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement,loose gravel drilling rock formation connected with a variety of engineering.
|Geology drilled||All kinds|
|Drill depth||0-200 m|
|Drilling Diameter||90 - 200mm(DTH.max.6''hammer)|
|Drilling Diameter||90 - 250mm(Mud Drilling)|
|Rig assembly||1 complete unit, main engine driven|
|Mobility||2 wheel tandem road trailer|
|Transportation||Towed by pickup or light truck|
|Drill pipe (diameter x length)||76/89 mm x 2 m|
|Foam pump||Hydraulic driven(Optional)|
|Rotation & Feed System|
|Top head drive by a hydraulic cylinder|
|Rotation torque||2600 N-m|
|Speed||0 - 80 rpm.|
|Head travel||2.25 meter|
|Pull-up speed-slow feed||1.22 meter/min|
|Pull-up speed-rapid feed||12.26 meter/min|
|Pull-down speed-slow feed||0-1.88 meter/min|
|Pull-down speed-rapid feed||0- 16.90 meter/min|
|Drill pipe length||2.00 meter|
|Drill pipe diameter||76/89 mm|
|Thread||2 3/8 REG API Mod|
|Power pack speed||3000 rpm.|
|Load power pack||max. 47 hp.|
|Flow capacity||400 liter/min|
|Foam Tank||50 liter|
|Max. working pressure||40 bar|
|Hydraulic tank capacity||180 liter|
|2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional).|
|Lubricator of venturi-type for down-the-hole drills.|
|Max. pressure||40 bar|
|Oil tank capacity||8 liter|
|Overall height||2100 mm|
