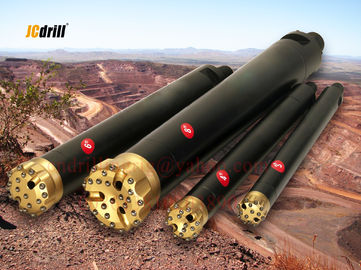

Carbide Material 6'' DTH Hammer For Water Well And Rock Blasting Drilling

China Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling supplier
Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling supplier Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling supplier Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling supplier

Large Image :  Carbide Material 6'' DTH Hammer For Water Well And Rock Blasting Drilling

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: HD65

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year
Contact Now
Detailed Product Description
Model Number: HD65 Type: DTH Hammer
Usage: Mining, Coal, Iron Ore, Gold Mining Drilling Material: Tungsten Carbide
Shank: COP,DHD,MISSION, SD Face Shape: Flat Shape And Drop-center Shape
Thread: 3-1/2 API REG Angle: 135-155mm
Working Pressure: 1-2.4Mpa Air Consumption: 9-23m3/min

6'' rock DTH hammer for water well and rock blasting drill with Carbide Material hole range 165-203mm



Characteristics



1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe

Application

With professional manufacturing experience in DTH hammer production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe

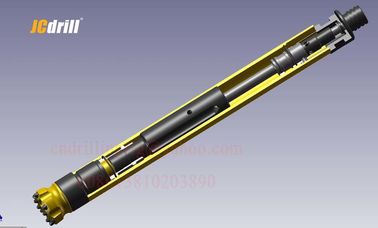

Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting DrillingSpecification

HD65 DTH Hammer

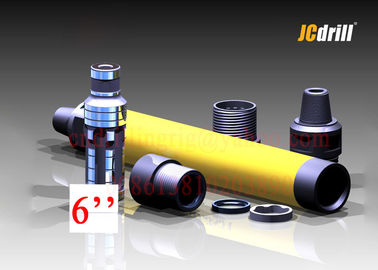

Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling Item Description Weight Parts No.
1.Top Sub 20 HD6501
2.O-Ring of Top Sub 0.02 HD6502
3.Check Valve 1 HD6503
4.Spring 0.04 HD6504
5.Compression Buffer 0.08 HD6505
6.Air Distributor 5 HD6506
7.Internal Cylinder 5 HD6507
8.Piston 23.6 HD6508
9.External Cylinder 36.8 HD6509
10.Guided Sleeve 2.4 HD6510
11.O-Ring of stop ring 0.02 HD6511
12.Stop Ring 0.6 HD6512
13.Drive Chuck 6 HD6513
14.Drill Bit 26 HD6514
According to customer's requirement,the top sub can be made into two spanners,and put protection buttons,An air controllinghole can be drilled on the check valve to provide more efficient cuttings discharge.
Technical Data
Length Weight External Diameter Bit Shank Hole Range Connection Thread
(Less bit) (Less bit)
1248mm 100.0kg 142mm COP64 DHD360 152-203mm API 3-1/2''REG
Working Pressure Impact rate at 0.5 Mpa Recommended Rotation Speed Air Consumption
1.0-2.5Mpa 23HZ 20-30r/min 1.0Mpa 1.8Mpa 2.4Mpa
10m3/min 20m3/min 28.5m3/min

Packing& Delivery                                                                                                                                        ​

Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling

Service

Carbide Material  6'' DTH Hammer For Water Well And Rock Blasting Drilling

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
