Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material

China Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material supplier
Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material supplier Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material supplier

Large Image :  Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: CIR90

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year
Contact Now
Detailed Product Description
Model Number: CIR90 Type: DTH Hammer
Usage: Mining, Coal, Iron Ore, Gold Mining Drilling Material: Tungsten Carbide
Shank: COP,DHD,MISSION, SD Face Shape: Flat Shape And Drop-center Shape
Body Type: Normal Type And Retract Type Angle: 65-178mm
Working Pressure: 0.5-0.7Mpa Air Consumption: 6.5-8m3/min

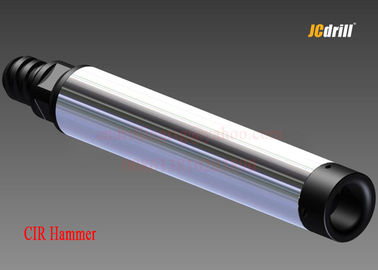

CIR Series Low Pressure Down The Hole Hammer Drilling with Solid Steel Material



Application

CIR series DTH Hammer, a kind of valve equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.
The compressed air is adopted as the driving force. To get a better performance and prevent dust pollution, some high-pressure water may be added into the air for wet rock drilling.

Characteristics

1. The strong energy of single impact and the low energy consumption in rock crushing.
2. The weight ratio of piston and bit almost reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and the extended service life of the drilling tool.
3. A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.
4. Acheck valves device is available to drill holes under water.
The HR series DTH Hammer, an ideal drilling tool, is widely used in such industries relating to energy,construction,metallurgy,building etc.



Specification

Technical Parameters of CIR series low pressure DTH Hammer

Model External Diameter Bit Shank Hole Range Working Pressure Air Consumption
CIR65 56mm CIR65 65-75mm 0.5-1.2Mpa 0.5Mpa-1.2Mpa 2.5-6m3/min
CIR80 72mm CIR80 83mm 0.5-1.2Mpa 0.5Mpa-1.2Mpa 4-8m3/min
CIR90 80mm CIR90 85-110mm 0.5-0.7Mpa 0.5-0.7Mpa 6.5-8m3/min
CIR110 98mm CIR110 110-135mm 0.5-0.7Mpa 0.5-0.7Mpa 9.5-11m3/min
CIR150 137mm CIR90 155-178mm 0.5-0.7Mpa 0.5-0.7Mpa 15-17m3/min

Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel MaterialPacking& Delivery                                                                                                                                        ​

Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material

Service

Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​

Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material     Low Pressure DTH Drilling Tools Down The Hole Hammer Drilling with Solid Steel Material
