Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits

China Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits supplier
Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits supplier Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits supplier Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits supplier

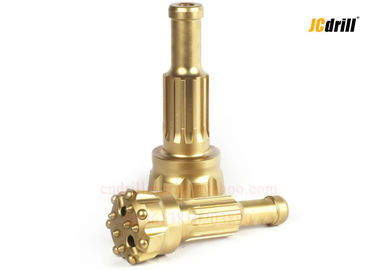

Large Image :  Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: 115mm

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year
Contact Now
Detailed Product Description
Model Number: 115mm Type: DTH Button Bits
Usage: Mining, Coal, Iron Ore, Gold Mining Drilling Material: Tungsten Carbide
Shank: IR CIR Button Bit Shape: Spherical And Ballistic
Face Shape: Flat Shape And Drop-center Shape Body Type: Normal Type And Retract Type
Angle: 76-90mm Flushing Hole: 2

115mm DHD340 Forging Type DTH Drill Bit , ISO CE Tungsten Carbide Material Mining Drill Bit



Characteristics



1. high and low air pressure down-the-hole drill bits

2. Low air pressure hole Dia.:65-220mm

3. High air pressure hole Dia.:85-305mm

4. Face type:drop center/concave/convex/double gauge/flat

5. Our DTH Bit can be suitable for Original Atlas Copco /Sandivk big brands' DTH Hammers, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.

6. High grade tungsten carbide inserts
7. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Application

The dth button bits is the tool cutting rock. Jcdrill DTH button bits are made of superior quality alloy steel which is made by Timken in U.S. Besides, all our DTH bits are using the brand "Element Six" T.C carbide which provides (the T.C buttons) for Boart Longyear. In addition art manufacturing technology makes our dth button bits with higher and more reliable quality.

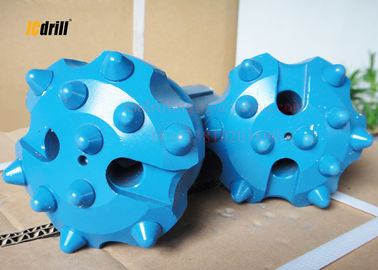

Different face style makes DTH bits suitable for various rock conditions.

Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.



Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.



Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.



DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers.



• Underground mining
• Tunneling
• Quarry benching operations



Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill BitsSpecification

Drill Bits Bit Dia.(mm) No.Air Holes Gauge Buttons Front Buttons

Weight

(kg)

Parts No.

DHD340A,COP44​

Forging Type DTH Drill Bit , ISO CE Tungsten Carbide Material Mining Drill Bits

105 2 6×14 5×13 8.5 HD45-105
110 2 7×14 6×13 8.8 HD45-110
115 2 7×14 6×13 9.0 HD45-115
120 2 8×14 7×13 9.8 HD45-120
127 2 8×14 7×13 11.0 HD45-127

SD4

Forging Type DTH Drill Bit , ISO CE Tungsten Carbide Material Mining Drill Bits

105 2 6×14 5×13 9.0 SD4-105
110 2 7×14 6×13 9.5 SD4-110
115 2 7×14 6×13 9.8 SD4-115
120 2 8×14 7×13 11.5 SD4-120
127 2 8×14 7×13 12.3 SD4-127

QL40

Forging Type DTH Drill Bit , ISO CE Tungsten Carbide Material Mining Drill Bits

105 2 6×14 5×13 9.0 QL40-105
110 2 7×14 6×13 9.2 QL40-110
115 2 7×14 6×13 9.5 QL40-115
120 2 8×14 7×13 10.3 QL40-120
127 2 8×14 7×13 11.5 QL40-127

MISSION40

Forging Type DTH Drill Bit , ISO CE Tungsten Carbide Material Mining Drill Bits



105 2 6×14 5×13 6.0 HM4-105
110 2 7×14 6×13 6.2 HM4-110
115 2 7×14 6×13 6.6 HM4-115
120 2 8×14 7×13 7.0 HM4-120
127 2 8×14 7×13 7.4 HM4-127
We can design and manufcture ccording to customer's requirement of the bit daimeter,No.of air holes,carbide button shape and the face shape.

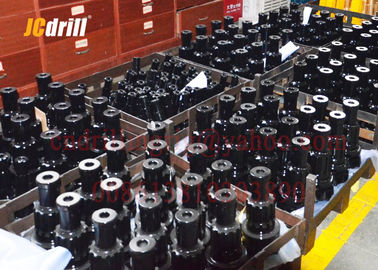

Packing& Delivery                                                                                                                                        ​

Tungsten Carbide DTH Drilling Tools Forging Type DTH Mining Drill Bits

Service



In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
