Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit

Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit
Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit

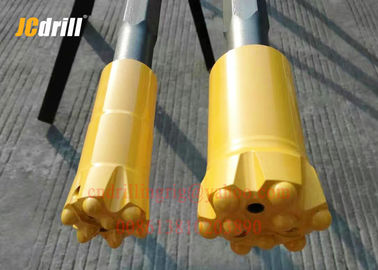

Large Image :  Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: T38
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year

Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit

Description
Model Number: T38 Type: Rock Drill Bits
Usage: Mining, Coal, Iron Ore, Gold Mining Drilling Material: Tungsten Carbide
Shank: R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60 Button Bit Shape: Spherical And Ballistic
Face Shape: Flat Shape And Drop-center Shape Body Type: Normal Type And Retract Type
Angle: 30°,35°,40° Flushing Hole: 2 Or 4
High Light:

button drill bit

,

tapered drill bits

T38 Thread Button Drill Bit Diameter 64 - 89mm Ballistic Rock Drilling Bits



Application

The thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

Rock Drill Thread Button Bits is suitable for R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It's widely used for hard rock(f=8~18) drilling use.



Characteristics
1. Thread connection: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
2. Alloy steel:42CrMo
3. Suitable carbide tips:YK05
4. Technology:hot-pressing or welding
Before Official Order, please confirm below informations:
1. Thread Type
2. Standard or Retrac
3. Bit button shape (tip shape)--Spherical or Ballistic
4. Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 0
Specification
Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 1

Packing& Delivery                                                                                                                                        ​

Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 2 Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 3

Service

Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 4

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​

Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 5     Steel Rock Drill Bits Diameter 64 - 89mm , T38 Threaded Button Drill Bit 6
