Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength

JCdrill---The best and Specilized "one-stop selection sourcing platform“ for drilling rig and tools. —— Orlan

—— Orlan

The trailer water drilling rig TWD200 is really good borehole machine,beasy operation,high efficiency and good price. —— Кочетков Юрий

—— Кочетков Юрий

The hydraulic rotary water well drilling rig JKS300,JKCS400 drilling by DTH hammer and mud pump,very good quality and considerate after sales service!

—— Mr. Mohammed Seif

We start use the JK580 DTH rock drilling rig since 2009,now we have 6set working in our customer's mining site,perfect machine with reasonable price.

—— Gocha Rostiashvili

I'm Online Chat Now

Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength

Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength
Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength

Large Image :  Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: T51

Payment & Shipping Terms:

Minimum Order Quantity: 5Pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Detailed Product Description
Parts Name: Thread Rock Drill Rod Material: Carbon Steel
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Forging
Other Name: Thread Drill Rod Machine Type: Drilling Tool
Thread Protector: Plastic, Metal, Rubber Shank: T51
Length: 600mm To 1200mm Hole Diameter: 48-80mm
High Light:

tapered drill rod

,

rock drill steel

T51 Speed Rod Threaded Drill Rod in Drifting Tunneling Benching top hammer rock drilling





Thread extension steel bars for rock drilling include extension rod, MF rod, light extension drill rod, drifter rod, shank adapter drill rod etc. We can also call such thread extension drill rod as threaded drill rod or threaded pipe, they own one end thread or both ends thread, with hollow round body or hollow hexagonal body. It is the main part of the threaded connection drilling tools or drilling equipments. Threaded drill rod is connected with top hammer rock drill rigs via shank adaptors & couplings, another end, they are connected with drill bits via thread also. Threaded rod could be connected with other drill rods to constitute a complete set of threaded connection whole drilling tools for drilling. Threaded drill rods could be connected with one piece of shank adapters and drill bits, or connected with lots of adaptors and bits. And ther can also be used in shallow holes and small diameter rock hole drilling, the applicable scope is wide, drilling speed, impact energy transmission loss is small, high drilling efficiency, easily to realize the drilling mechanization and improve the superiority of drilling conditions. Therefore, thread extension drill rods share a very very big proportion in the whole drilling fields.



Thread extension steel bars for rock drilling must own high fatigue strength, elasticity, rigidity and toughness, but strength and toughness is contradictory. The thread at both ends of the thread rods is a whole set of drilling tools, it's the key part of rod. It is well known that the performance of the material could be played well only after going through heat treatment to release its maximum potential, therefore, the choice of material and heat treatment process are important on an equal basis.



Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 0



Shank rod Hex25-R25, 10 feet.

Drifter rod R32-Hex25-R25, 8 feet 10 feet.

Drifter rod R28-Hex28-R25, 10 feet.

Drifter rod R32-Hex28-R28, 10 12 13 14 feet.

Drifter rod R32-Hex32-R28, 10 feet.

Drifter rod R38- Hex32-R28, 10 12 14 feet.

Drifter rod R38-Hex32-R32, 12 14 16 feet.

Drifter rod T38-Hex32-R32, 12 14 feet.

Drifter rod R38-Hex35-R32, 10 12 14 16 18 feet.

Drifter rod T38-Hex35-R32, 12 14 16 18 20 feet.

Drifter rod T38-Hex35-R35, 14 16 18 20 feet.

Drifter rod T38-Round39-R32, 14 16 18 20 feet.

MF drifter rod T38-Hex35-R32, 12 14 16 18 feet.



Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process



1. High precision in size and shape

2. Good low temperature toughness

3. Excellent comprehensive mechanical properties

4. High connection strength and sealability

5. Large inside diameter of tool joint

6. High torque resistance

7. High fatigue strength and long fatigue life

Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 1

Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 2

Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 3

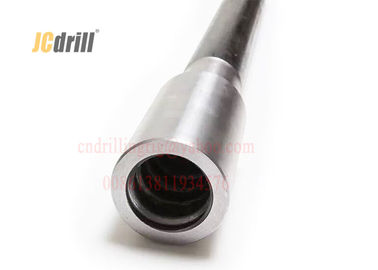

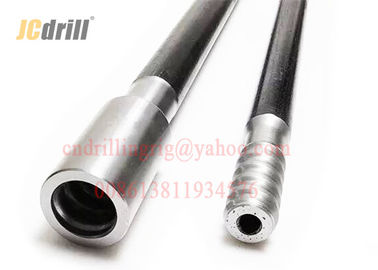

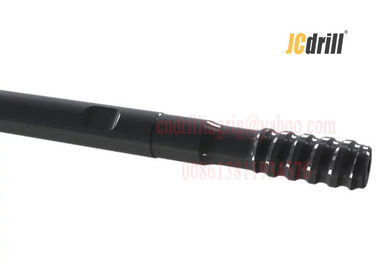

T51Thread rock drill rod

Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 4Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 5





Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 6

 Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 7 Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 8Steel Threaded Drill Rod For Top Hammer Rock Drilling Rigs High Strength 9

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
