T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter

T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter
T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter

Large Image :  T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: T38

Payment & Shipping Terms:

Minimum Order Quantity: 5Pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Detailed Product Description
Parts Name: Thread Rock Drill Rod Material: Carbon Steel
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Forging
Other Name: Thread Drill Rod Machine Type: Drilling Tool
Thread Protector: Plastic, Metal, Rubber Shank: T38
Length: 600mm To 1200mm Hole Diameter: 48-80mm
High Light:

tapered drill rod

,

rock drill steel

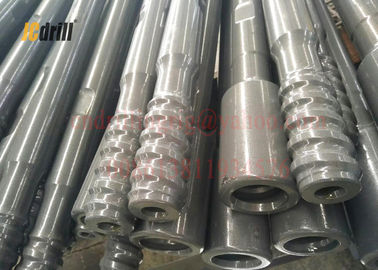

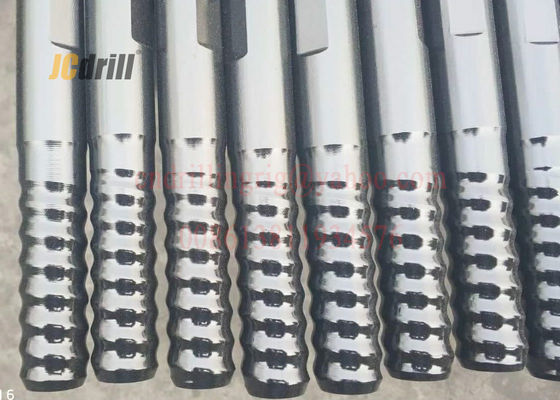

T38 Blast Hole Threaded Drill Rod, Extension Rod with Coupling Sleeves and shank adapter





JCDRILL’ drifting and extension drill rods are for in drifting, tunneling, long-hole drilling, bench and production drilling industries. These rods are produced with round or hexagonal sections in all common thread designs, and in Male/Male (M/M) or Male/Female (M/F) connections. All our drifting and extension drill rods are heat-treated with carburization or high frequency, combinated with phosphorization



T38 Blast Hole Bench Drilling Extension rods are made by hollow drill steels; there are two shapes of extension rods, round type and hexagonal type. This hollow hole are usually named flushing hole, used for transmitting water or air during drilling. And the threads can be used for connecting couplings, shanks, couplings or bits.



Usually for extension rods, there are R22, R25, R28, R32,R3212, R38, T38, T45, T51, ST58, T60 threads, and different lengths of rods are available from 600mm to 6400mm usually.



T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 0



1. High precision in size and shape

2. Good low temperature toughness

3. Excellent comprehensive mechanical properties

4. High connection strength and sealability

5. Large inside diameter of tool joint

6. High torque resistance

7. High fatigue strength and long fatigue life



Hexagonal cross sections rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing.

Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications.

With the longer steel tending to be larger in diameter, conventional extension steel is characterized by a duplicate thread on each end of the steel.,



Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

Type: Hex. Drifter Rod, Extension Rod, Speed Rod, MF-Rod



Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process





T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 1

T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 2





T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 3

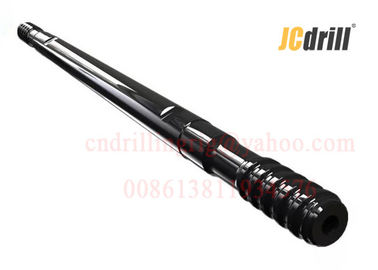

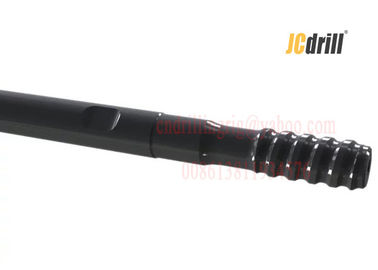

T38 Thread rock drill rod

T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 4T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 5





T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 6

 T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 7T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 8

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 9T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 10T38 Blast Hole Threaded Drill Extension Rod With Coupling Sleeves Shank Adapter 11
