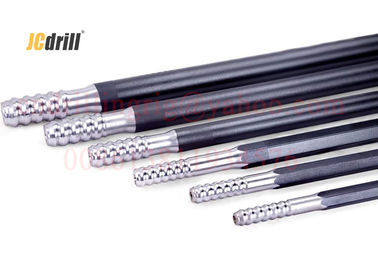

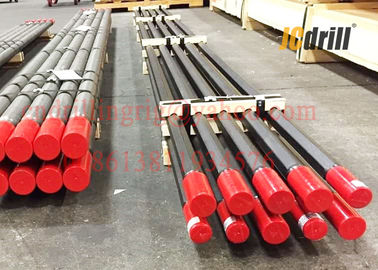

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length
R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length

Large Image :  R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: R32

Payment & Shipping Terms:

Minimum Order Quantity: 5Pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Detailed Product Description
Parts Name: Thread Rock Drill Rod Material: Carbon Steel
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Forging
Other Name: Thread Drill Rod Machine Type: Drilling Tool
Thread Protector: Plastic, Metal, Rubber Shank: R32
Length: 610mm To 6400mm Hole Diameter: 41-127mm
High Light:

tapered drill rod

,

rock drill steel

R32 Drifting Tunnelling Speed Threaded Drill Rod ,Deifter Rod With 610-6400mm Length

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 0



Thread drill rod other names extension rod, Extension drill steel, Extension drill rod, and Extension steel, M/F rod ( Speedrod ) , Produce Hexagonal and round cross sections, Hexagon rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing. Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications. With the longer steel tending to be larger in diameter, conventional extension steel is characterized by a duplicate thread on each end of the steel.



Extension rods are made by hollow drill steels; there are two shapes of extension rods, round type and hexagonal type. This hollow hole are usually named flushing hole, used for transmitting water or air during drilling. And the threads can be used for connecting couplings, shanks, couplings or bits.



Usually for extension rods, there are R22, R25, R28, R32, R38, T38, T45, T51, ST58, T60 threads, and different lengths of rods are available from 600mm to 6400mm usually.



R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 1



Hexagonal cross sections rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing.

Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications.

With the longer steel tending to be larger in diameter, conventional extension steel is characterized by a duplicate thread on each end of the steel.,



Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

Type: Hex. Drifter Rod, Extension Rod, Speed Rod, MF-Rod



Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process



1. High precision in size and shape

2. Good low temperature toughness

3. Excellent comprehensive mechanical properties

4. High connection strength and sealability

5.  Large inside diameter of tool joint

6. High torque resistance

7. High fatigue strength and long fatigue life

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 2

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 3

R32 Thread drill rod

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 4R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 5



R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 6R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 7 R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 8

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 9

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 10R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 11R32 Steel Drill Rod Thread Types For Drifting Tunnelling 610-6400mm Length 12
