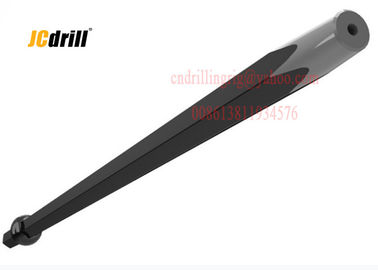

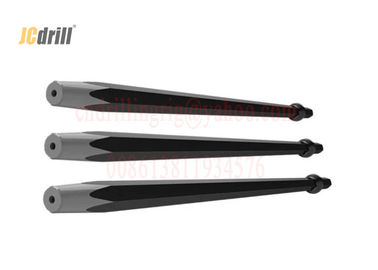

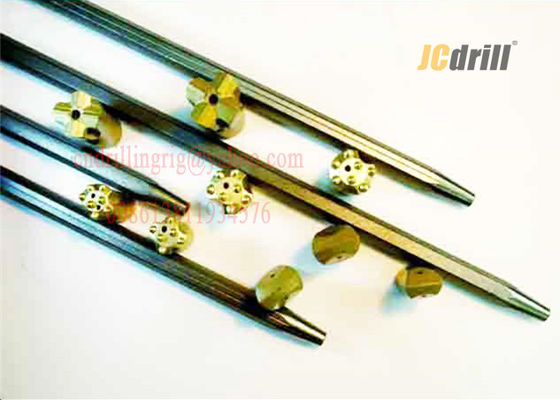

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods
H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods

Large Image :  H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: H22

Payment & Shipping Terms:

Minimum Order Quantity: 5Pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Detailed Product Description
Parts Name: Tapered Rock Drill Rod Material: Carbon Steel
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Forging
Other Name: Tapered Rock Drill Steels Machine Type: Drilling Tool
Thread Protector: Plastic, Metal, Rubber Shank: H22x108mm
Shank2: H19x108mm Diameter: 20-42mm
Length: 400mm To 8000mm Hole Diameter: 19mm To 41mm
High Light:

tapered drill rod

,

integral drill rods

H22 Tapered Rock Drill Steel Rod tapered Hexagonal Hollow Steel for mining drilling in tunning





Tapered drill rod is a further development of the integral drill rods. It usually has a forged collar to maintain the proper shank striking face position in the rock drill. Tapered drill rods effective lengths are measured from the collar to the bit end,which are usually from 0.6 meters to 3.6 meters.



Hex tapered hollow drill rods for rock drill for jack hammer rock drill YT24,YT27,YT28,YT29A,S82 etc


Effective lengths: 400mm ~ 8000mm;
Taper degrees: 4°46’, 6°, 7°, 11°, 12°;
Shank sizes: Hex.19mm,Hex. 22mm, Hex.25mm;
Other lengths are available upon request.



1. The ordinary connection taper degree is 7º, 11º and 12º, other degrees like 4.8º, 6º and 9º are also available upon request;

2. The ordinary shank is Hex22 × 108mm, Hex25 × 159mm and other styles are also available if upon customers’ request;

3. The rod length must be specified in order;

4. In order to adapt to different rock conditions, the drill rod is selected by users.

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 0

Hex22mm / Hex25mm Rock Tapered Drill Rod , Blast Hole Drilling Tapered Rod

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.


1. Excellent comprehensive mechanical properties

2. High connection strength and sealability

3. High fatigue strength and long fatigue life

4. Good flushing effect to ensure high drilling rate

5. Steel grade: 95CrMo equivalent to SANDBAR 61.

6. Shank size: hex.22mm×108mm, hex.22mm×159mm.

hex.22mm×80mm, hex.25mm×108mm. hex.25mm×159mm.

7. Taper: 6, 7, 11, 12 degree etc.

8. With highly and strength of resistance on the bending, welding fixed.

9. Highly efficiency on production and steady quality.

10 It’s able to keep the hole straight and with long use time.



Types of drill rods

Specifications

Length(mm)

Shank

Weight (kg)

Tapered drill rods

Taper Angle: 4, 6, 7, 11, 12 degree

400mm to 8000mm

Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm

1.7 - 24.9

Integral drill steel

Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

400mm to 4800mm

3 – 15.4

Plug hole rods

Chisel bit diameter: 17mm, 20mm, 22mm

150mm to 710mm

0.6 - 2.9



H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 1

Tapered Drill Rod-H22 & H25

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 2H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 3



H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 4



H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 5



H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 6

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 7H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 8

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 9

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 10H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 11H22 Tapered Rock Drill Steel Rod , Hexagonal Hollow Mining Drill Rods 12
