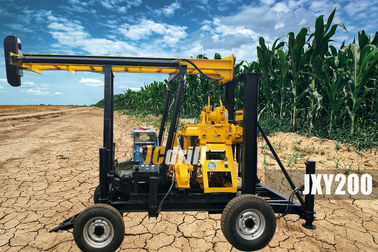

Mobile Trailer Mounted Water Well Drilling Rig With 200m Drilling Capacity

Mobile Trailer Mounted Water Well Drilling Rig With 200m Drilling Capacity
Mobile Trailer Mounted Water Well Drilling Rig With 200m Drilling Capacity Mobile Trailer Mounted Water Well Drilling Rig With 200m Drilling Capacity

Large Image :  Mobile Trailer Mounted Water Well Drilling Rig With 200m Drilling Capacity

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JXY200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

Mobile Trailer Mounted Water Well Drilling Rig With 200m Drilling Capacity

Description
Model Number: JXY200 Drilling Depth: 0-200m
Drilling Diameter: 400mm Drill Pipe Length: 4.2m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-80rpm Engine Power: 22HP
Drill Pipe: 50/60mm Mud Pump: BW250/BW160
Warranty: 1year
High Light:

water well drilling equipment

,

water well drilling machine

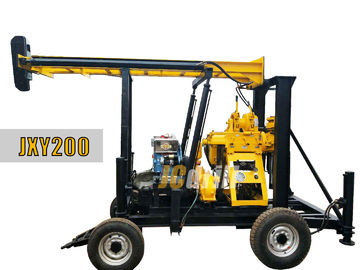

JXY200 Trailer Mounted Water Well Drilling Rig, 200m drilling capacity



Application

JXY200 water well drilling machine adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.

Characteristics

1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
1. Power Supply
It can be driven by either electric motor or diesel engine.

2. Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
3. Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
4. Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
5. Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.

6. Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.

Specification
1.Overall parameters
Drilling depth 200m
Maximum open hole caliber 400mm
End hole caliber 75mm
Diameter of drill rod 50mm
Drilling angle 90~75
Weight(not include power) 760kg
Dimension 2750*950*1600mm
2. Vertical shaft
Rotating speed 71,142, ,310,,620r/min
Feeding stroke 450mm
3.Hoist
Max. single line hoisting capacity 2400Kg
Diameter of wire rope 13mm
Volume of winding drum 35m
Hug floodgate caliber 230mm
Hug floodgate belt width 70mm
4.Mud pump
Type Horizontal single urn twin-action
Rate of flow 180L/min
MAX. pressure 1.5MPa
Working pressure 0.7MPa
Diameter of water inlet tube 50mm
Diameter of water outlet tube 45mm
5.Power
Diesel engine 22HP, 2200r/min
Electrical motor 15KW, 1460r/min

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
