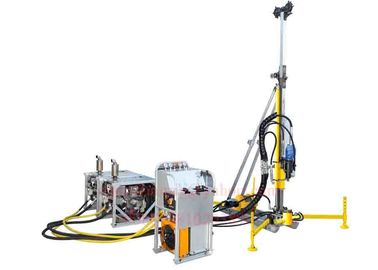

Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth

China Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth supplier
Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth supplier Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth supplier Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth supplier Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth supplier Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth supplier

Large Image :  Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: EP200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: 2Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000Set
Contact Now
Detailed Product Description
Type: Core Drilling Rig Dill Depth Capacity: 200M
Hole Diameter: 96/75.7/60mm Core Diameter: 63.5/56/42mm
Drill Angle: 45°-90° Hydraulic System: 21MPa/max 54L/min Water Cooler
Maximum Toque: 400NM Weight: 513kg
Module Quantity: 4pcs Application: Mining

200M Depth Portable Core Drill Rig Light weight Design with Kubota Engine



Application



EP200 is widely used in mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.), hydraulic and hydropower project, tunnel exploration and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous regions, forests and plateaus. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.

Characteristics



Lightweight –Modulized design with the heaviest pieceweighing only 120kg

Aviation aluminum materials used for more than 90% of the framework

Fast– Easy to relocate with the capability of being assembled/disassembled within only 20 minutes

Thin wall rods, low resistance,and speed penetration

Excellent – Long stroke cylinder, easier to control than the chain

Cost-efficient – No road construction; No infrastructure construction; Time saving

Hydraulic coring and drilling; No drilling tower; Energy saving

Environmentally friendly; Worry-free

Low consumption;Cost saving

The key issue regarding the traditional portable and vertical drilling machines, when executing projects with a depth of 200 meters, is the balance of lightweight and efficiency. With its lightweight, easy assembling/dissembling capability and high efficiency, EP200 is your best new choice.

Specification

Drillable Depth HQ/NTW/BTW 30 /100/200m
Borehole Diameter   96/75.7/60mm
Core Diameter Rod Length 63.5/56/42mm
Engine power D1105-T , 23.5kw/3000rpm
KUBOTA
Pressure 21 Maximum pressure 54 Maximum flow Water cooler
Top drive Maximum toque 400NM
Rotation head Maximum rotation speed 1300rpm
  Feed travel (Cylinder drive) 1.27m
  Pull/thrust 33KN/24KN
Winch Average speed 150m/min
Lift 600kg
Were Diameter/Accommodation 5mm/240m
Mast 3.8m
Height
Drill Angle 45°-90°
Size and weight Working area/Module quantity 2.5m X2.5 m / 4PCS
Heaviest module/Gross Weight 176kg / 513kg

200M Depth Portable Core Drill Rig Light weight Design with Kubota Engine

Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M DepthPacking& Delivery

Fast Portable Core Drilling Machine For Mining Full Hydraulic 200M DepthFast Portable Core Drilling Machine For Mining Full Hydraulic 200M Depth

Service



In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
