Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type

China Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type supplier
Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type supplier Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type supplier Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type supplier Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type supplier

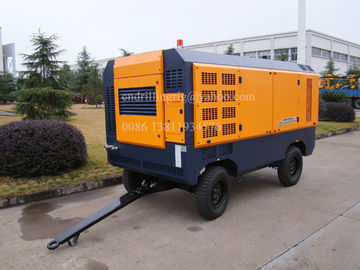

Large Image :  Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type

Product Details:

Place of Origin: China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: HG950CG-20

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: standard export transportation package
Delivery Time: 2Weeks
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 2000Set/Year
Contact Now
Detailed Product Description
Model Number: HG950CG-20 Type: Portable/screw
Power Type: Diesel Engine/electric Application: Water Well Drilling/mining Drilling
Apacity Control: 0~100% Stepless Speed Regulation Flow: 15-26m3/min
Pressure: 14-20bar Color: Yellow

Water well drilling use High pressure Diesel engine Driven Mobile screw air compressor



Application



Portable Screw Air Compressors (Diesel power series)

Portable Screw Air Compressors (Diesel power series) are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others.

Our Portable Screw Air Compressors (Diesel power series) are highly efficient and reliable with a full range of selections. The power range falls between 37 kW to 300 kW, the displacement covers up to 40 m3/min, and the discharge pressure amounts up to 2.5 MPa.

Characteristics



1. Compressor: With our patented large diameter, the master engine is directly connected to the diesel engine through highly flexible coupling. Without overdrive gear, the master engine rotates in parallel with the diesel engine, resulting in higher efficiency, better reliability, and longer service.

2. Diesel engine: Diesel engines under such domestic and overseas brands as Cummins and Yuchai comply with the national Tier 2 motor vehicle emission standards. These diesel engines have strong impetus with a low level of fuel consumption. They are also covered under the national aftersales network, so users may quickly access complete services.

3. The air capacity control system is simple and reliable. Based on the size of the air capacity, air injection, as well as the automated diesel accelerator, can be automatically adjusted from 0% to 100%. As a result, diesel oil consumption can be optimized.

4. With an intelligence microcomputer in place, many types of operating data can be effectively monitored, including discharge pressure, discharge temperature, diesel rotational speed, oil pressure, water temperature, and oil capacity. In addition, it is built with an automated alarm system and protective shutdown mechanism.

5. With multilevel air filters, our products can operate in a dusty working environment. Our multilevel fuel filters are also built to accommodate the current oil quality in the domestic market. Featuring an oil and water cooler with an ultra-high capacity, our compressors are also suitable for environments with a high temperature or high pressure.

6. With vast maintenance and repair space, all components and parts that require maintenance are completely accessible, including maintenance work on air filters, oil filters, fuel tanks, batteries, and oil coolers, thus reducing shutdown time.

7. Despite adverse topographic conditions, our products can be flexible and portable. Each compressor is equipped with a hanging ring for safe loading and transporting purposes.

Specification

Model Unit CG150-14 CG160-16 HG550H-16 HG650H-16 HG750L-8 HG800CG-20 HG950CG-20
Type Double-Flighted Screw/Portable/Oil cooler
Application Water Well Drilling
Nominal volume flow m3/min 15 14 15 17 21 22 26
Rated Discharge Pressure bar 14 16 16 16 8 20 20
Lubricant Capacity L 65 80 80 80 80 137 137
Manufacturer   YUCHAI CUMMINS CUMMINS CUMMINS CUMMINS CUMMINS CUMMINS
Type   YC6A180Z-T21 6BTAA5.9-C205 6CTA8.3-C240 6CTA8.3-C260 6LTAA8.9-C360
Cylinder   6 6 6 6 6 6 6
Rated Output Power KW 140 153 179 194 194 264 264
Working Speed rpm 2200 2200 2200 2200 2200 2200 2200
Lubricating oil Capacity L 18 24 24 24 24 24 24
Coolant Volume L 35 60 60 60 60 60 60
Fuel Tank Capacity L 335 350 350 350 350 350 350
Q'ty & Spe of air supply valve   1-G2'', 1-G1''
Machine Size mm 3000X*1980X2060 3400X1980X2210 4080X2080X2100
Recommend Hole Dia. mm 138 146-152 152-180 152-180 203-219 203-219 203-219
Recommend Hole Depth m 100-120 100-130 100-130 100-130 100-130 100-130 120-150

Packing& Delivery

Water Well Drilling Portable Screw Air Compressor High Pressure Diesel Engine Type

Service

12'' High Pressure DTH hammer for fundation,construction and borehole drilling ,305-445mm hole range

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
