Trailer Mounted Mobile Water Well Drilling Rig , Hydraulic Borehole Drilling Machine

small.img.alt small.img.alt small.img.alt

Large Image :  Trailer Mounted Mobile Water Well Drilling Rig , Hydraulic Borehole Drilling Machine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year
Detailed Product Description
Model Number: TWD200 Drilling Depth: 0-200m
Drilling Diameter: 254mm Drill Pipe Length: 2/3m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-80rpm Engine Power: 22HP
Drill Pipe: 76/89mm Mud Pump: BW250
Warranty: 1year Pull Back Capacity: 8.5ton
Rotary Torque: 2600NM
High Light:

water well drilling equipment


water borehole drilling equipment

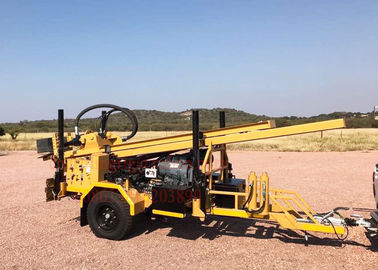

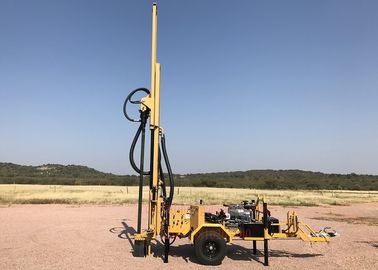

TWD200 trailer mounted water well drilling rig, drilling by air compressor and mud pump max.200m,254mm



Table to handle water well drilling for NGO's and private customers. In most cases where boreholes are drilled in africa it is to install handpumps or solar pumps with a size smaller than 6" .For that reason on mud rotary holes we needed a 8" capacity and on DTH a 6" capacity. This is big enough to install most water pumps.The rig must be able to handle 6" PVC casing instalations.


Uses proven technology like the deutz F3L912 engine and even after long periods of drilling you can still keep your hand on the hydraulic tank.We have desided to use roquete valves,it main parts use world famous brand such as USA imported high torque Eaton motor,Italy imported Hydro-control hydraulic valve,Germany imported KTR coupling and USA Vickers hydraulic pump.
This rig uses 89mm drill pipes with 2 and 3/8 API Internal Flush threading. That reduces the friction in the case of mud rotary drilling as the internal joint diameter is 44mm.The drill tower is telescopic and uses earthalite blocks to reduce friction and is directly connected on the feed cylinder.The drill head is powered by a Eaton motor drive with gear box produce with 2600 Nm torque.So if you want a quality product that can drill upto 200mm holes.


The TWD200 drilling for groundwater can use air, foam or mud rotary for percussive drilling according to different textures.
It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.
In particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement,loose gravel drilling rock formation connected with a variety of engineering.

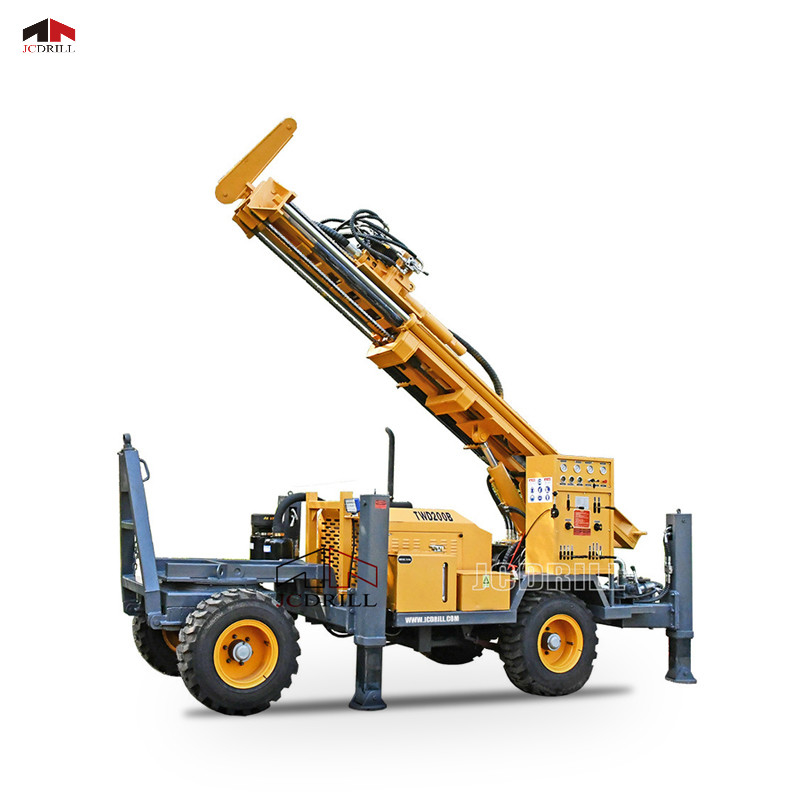

Trailer Mounted Mobile Water Well Drilling Rig , Hydraulic Borehole Drilling Machine 0


Geology drilled All kinds
Drill depth 0-200 m
Drilling Diameter 90 - 200mm(DTH.max.6''hammer)
Drilling Diameter 90 - 250mm(Mud Drilling)
Rig assembly 1 complete unit, main engine driven
Mobility 2 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
Foam pump Hydraulic driven(Optional)
Weight 2700 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2600 N-m
Speed 0 - 80 rpm.
Head travel 2.25 meter
Pull-up capacity 8.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Feed Stroke 2350mm
Diesel engine
Brnd Deutz
Power 33KW
Model F3-912
Speed 2300r/min
Cooling type air
Drill Pipe
Drill pipe length 2.00 meter
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Foam Pump(Optional)
Flow capacity 400 liter/min
Foam Tank 50 liter
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 180 liter
Stabilizing Jack
2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional).
Bore 150 mm.
Stroke 520 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 40 bar
Oil tank capacity 8 liter
Overall length 4100mm
Overall width 1890mm
Overall height 2100 mm
Packing& Delivery

Trailer Mounted Mobile Water Well Drilling Rig , Hydraulic Borehole Drilling Machine 1


Trailer Mounted Mobile Water Well Drilling Rig , Hydraulic Borehole Drilling Machine 2

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
