Trailer Mounted 90mm Water Well Drilling Rig Equipment

JCdrill---The best and Specilized "one-stop selection sourcing platform“ for drilling rig and tools. —— Orlan

—— Orlan

The trailer water drilling rig TWD200 is really good borehole machine,beasy operation,high efficiency and good price. —— Кочетков Юрий

—— Кочетков Юрий

The hydraulic rotary water well drilling rig JKS300,JKCS400 drilling by DTH hammer and mud pump,very good quality and considerate after sales service!

—— Mr. Mohammed Seif

We start use the JK580 DTH rock drilling rig since 2009,now we have 6set working in our customer's mining site,perfect machine with reasonable price.

—— Gocha Rostiashvili

I'm Online Chat Now

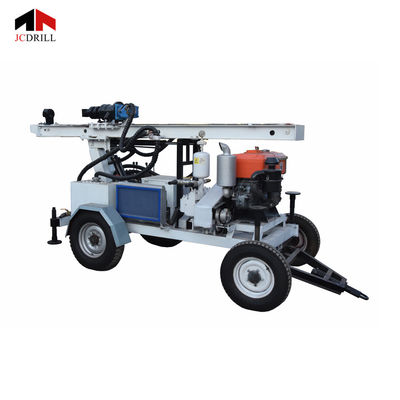

Trailer Mounted 90mm Water Well Drilling Rig Equipment

Trailer Mounted 90mm Water Well Drilling Rig Equipment
Trailer Mounted 90mm Water Well Drilling Rig Equipment

Large Image :  Trailer Mounted 90mm Water Well Drilling Rig Equipment

Product Details:

Place of Origin: China
Brand Name: JINCHENG
Certification: ISO
Model Number: TWD100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 10000usd-20000usd/set
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month
Detailed Product Description
Dimension(L*W*H): 3000*1550*2000mm Warranty: 1year
Water Hole Depth: 110m Rotation Torque: 2300 N-m
Drill Rod Length: 2m Power Type: Diesel
Voltage: 24V Weight: 1300kgs
Core Components: Motor, Pump, Gear, Bearing, Engine, Gearbox Water Hole Diameter: 90 - 180mm
Engine: DEUTZ Drill System And Operation: Hydraulic
Drill Pipe Diameter: 60mm
High Light:

90mm water well drilling rig

,

trailer mounted water drilling rig

,

60mm water well drilling rig

2Wheel Trailer mounted hydraulic water well drilling,suit for DTH air drilling and mud pump drilling



Application

TWD100 series drilling rig is a light, efficient and versatile drilling and drilling equipment. The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick.TWD100 mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 2100-kg that allows it to be pulled by a pick-up it is packed with features.

Characteristics

TWD100 combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer. This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations. TWD100 has mud pump built in this high head pump can drill deeper faster than alternative skid mounted centrifugal mud pumps and takes its power direct from the trailer power pack.



The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.


Keywords:Water well drilling rigs,borehole drilling rig,Water well drilling equipment,Well Drilling Rigs, Portable Well Drilling Equipment, Hydraulic Well Drilling Rigs,portable drilling rig,drill your own water well, home water well
Trailer Mounted 90mm Water Well Drilling Rig Equipment 0 Trailer Mounted 90mm Water Well Drilling Rig Equipment 1
Specification
Description TWD100
Geology drilled F=6-12
Drill depth 0-110 m
Drilling Diameter 90 - 180mm
Drill system and operation Hydraulic
Rig assembly 1 complete unit, main engine driven
Mobility 2 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 60/76 mm x 1.5 m(2m optional)
Mud pump(Optional) BW200
Foam pump Optional
Weight 1300 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder through heavy duty chain.
Rotation torque 1200 N-m
Speed 60-120 rpm.
Head travel 1.95 meter
Pull-up capacity 5000 kgs
Pull-down Capacity 5000 kgs
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Power 24KW
MODEL AMEC
Drill Pipe
Drill pipe length 2.00 meter
Drill pipe diameter 60/76 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Mud pump(Optional)
Flow capacity 200 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 140 liter
Stabilizing Jack
2 front jacks and 2 rear jacks.
Bore 60 mm.
Stroke 400 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 25 bar
Oil tank capacity 4 liter
Dimensions
Overall length 3000 mm
Overall width 1550 mm
Overall height 2000 mm

Service

Trailer Mounted 90mm Water Well Drilling Rig Equipment 2

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
