Payment & Shipping Terms:
|Parts Name:||Integral Drill Rod||Material:||Carbon Steel|
|Application:||Mining, Blasting,road Construction Hole Drilling||Processing Type:||Forging And Casting|
|Other Name:||Integral Drill Steels||Machine Type:||Drilling Tool|
|Thread Protector:||Plastic, Metal, Rubber||Shank:||H22x108mm|
|Length:||400mm To 6000mm||Hole Diameter:||19mm To 41mm|
tapered drill rod,
rock drill steel,
integral drill rods

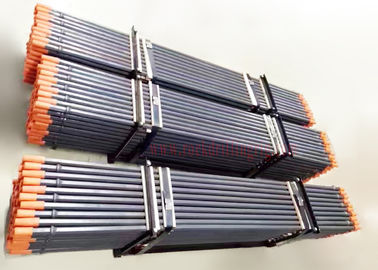

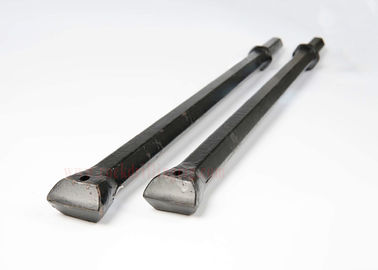

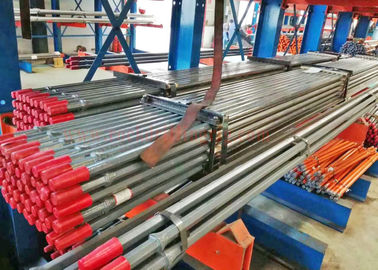

JCDRILL Chisel Head Integral Rock Drill Rods for Hard Rock Drilling
Integral drill rods are ideal in small hole drilling, all integral drill rods consist of hex. rods with integrated cemented carbide chisel-shaped bit heads. With the same steels as and the best carbides made in China, we are supplying different lengths of integral drill rods with different head diameters.
According to different application, different lengths are available from 600mm to 9600mm usually. With the best hollow drill steels and tungsten carbides, sinodrills integral drill steels will show you very good performance.
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm . Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure.
Beijing Jincheng Mining Technology Co.,Ltd. (JCDRILL) located in Xuanhua, Hebei Province, 130 km from Beijing, for more than 20 years we have specialized in research, development and produce of rock blasting drilling rig, top hammer drilling rig and relative accessories.Now, JCDRILL products account for 60% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
|Shank Style||Effective Length||Head Diameter|
|Hex19 × 108mm||400 ~ 4,000||1’ 4” ~ 13’ 1”||23 ~ 35||27/32 ~ 1 3/8|
|Hex22 × 108mm||400 ~ 9,600||1’ 4” ~ 31’ 6”||26 ~ 41||1 1/32 ~ 1 39/64|
|Hex25 × 108mm||600 ~ 6,400||1’ 11 5/8” ~ 21’||33 ~ 45||1 19/64 ~ 1 25/32|
|Hex25 ×159mm||800 ~ 6,400||2’ 7” ~ 21’||35 ~ 42||1 3/8 ~ 1 21/32|
In our after sales service system, We establish outstanding control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
|Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.||JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services|
|Q: Are you original manufacturer?||Q: Which payment terms are available to us?||Q: Which Incoterms 2010 terms can we work?|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.||
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|Q: How long will the delivery time take?||Q: How about after sales service?||
Q:Spare Parts When You Need Them
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
