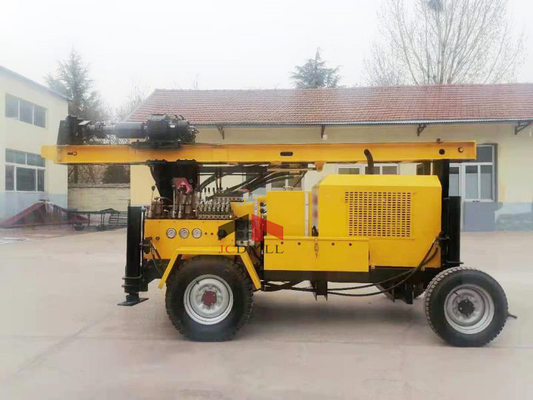

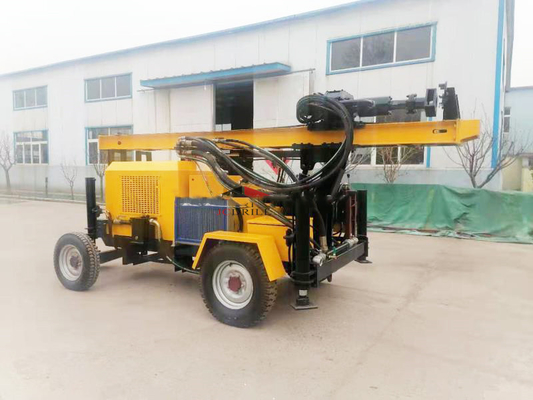

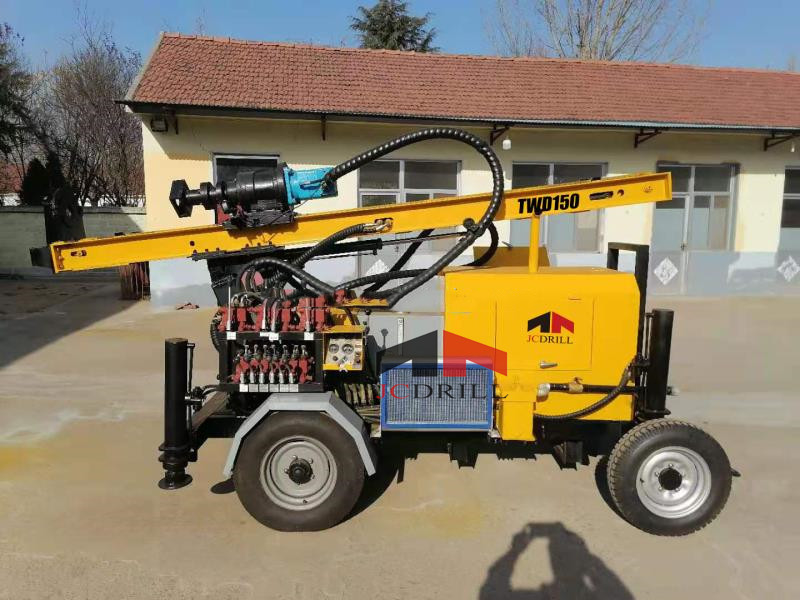

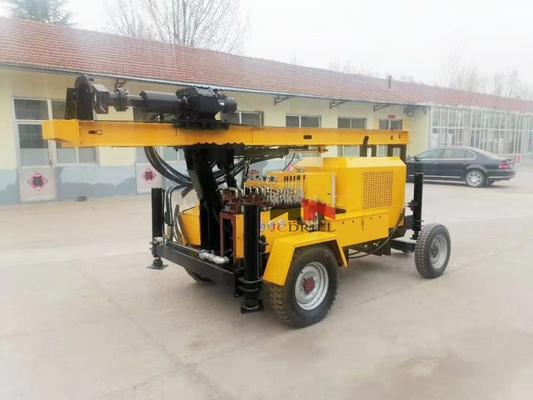

JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling

JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling
JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling

Large Image :  JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD150
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year
Detailed Product Description
Model Number: TD600 Dimension: 3500*1800*1900m
Driling Diameter: 90-254mm Engine: HBE
Drilling Depth: MAX.150m Weight: 2600KG
High Light:

dth rig water well drilling

,

150m rig water well drilling

,

150m trailer mounted drilling rig

TWD150B Trailer Mounted Water Well Drilling Rig

TWD150B series drilling rig is a light, efficient and versatile drilling and drilling equipment. The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick.

TWD150B mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 3200-kg that allows it to be pulled by a pick-up it is packed with features.

TWD150B combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer. This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations.

TWD150B has mud pump built in this high head pump can drill deeper faster than alternative skid mounted centrifugal mud pumps and takes its power direct from the trailer power pack.

The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.

Details
JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling 0



Product Parameters

Description TWD150B
Geology drilled All kinds
Drill depth 0-150 m
Drilling Diameter 90-254mm(Mud drilling)
Drilling Diameter 90-254mm(DTH Drilling)
Drill system and operation Hydraulic
Rig assembly Main engine driven
Mobility 4 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
DTH Hammer 4-6Inch
Foam pump Optional
Weight 2600 kg
Rotation&Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2250 N-m
Rotation Speed-Fast 0-110Rpm
Rotation Speed-Slower 0-55Rpm.
Head travel 2.25 meter
Pull-up capacity 7.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Power 44KW
Brand HBE
Model 4DHG
Type 4Cylinder,Naturally aspirated
Drill pipe
Drill pipe length 2000mm
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Mud pump(Optional)
Flow capacity 200 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 160 liter
Stable Jack
2 front jacks and 2 rear jacks. Hydraulic
Bore 60 mm.
Stroke 600 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 25 bar
Oil tank capacity 4 liter
Dimension
Overall length 3500 mm
Overall width 1800 mm
Overall height 1900 mm
Overall height 1901 mm



Shipping
JC DRILL TWD 150 Wheel Trailer DTH Rig Water Well Drilling 1


Service

1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on.


FAQ

Q: Are you original manufacturer?
A: Yes, we JCDRILL is an official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q: Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
