High Speed 150m Trailer Mounted Borewell Rig Machine

High Speed 150m Trailer Mounted Borewell Rig Machine
High Speed 150m Trailer Mounted Borewell Rig Machine High Speed 150m Trailer Mounted Borewell Rig Machine

Large Image :  High Speed 150m Trailer Mounted Borewell Rig Machine

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD150

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year
Detailed Product Description
Model Number: TWD150 Drilling Depth: 0-150m
Drilling Diameter: 254mm Drill Pipe Length: 2/3m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-110rpm Engine Power: 44KW
Drill Pipe: 76/89mm Mud Pump: BW250/BW200
Warranty: 1year Pull Back Capacity: 2600KGS
High Light:

trailer mounted borewell rig machine

,

150m borewell rig machine

,

150m truck mounted borehole drilling rig

150m Trailer Mounted Geological/Water Well Drill Rigs for Drilling Water Well TWD150

1. TWD150 series rotary trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment.

2. Equipped with hydraulic feed mechanism, drilling efficiency is greatly improved.

3. Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to monitor the hole.

4. Falling tower for hydraulic operation, convenient and reliable.

5. Diesel engine with electric start, labor saving.

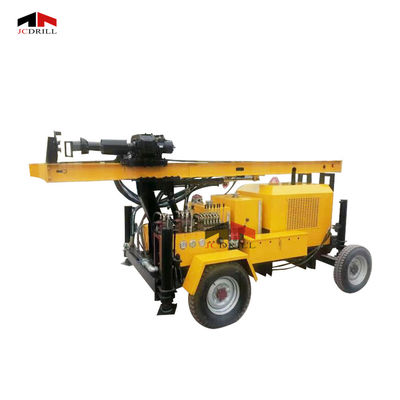

High Speed 150m Trailer Mounted Borewell Rig Machine 0

Specification

Description TWD150B
Geology drilled All kinds
Drill depth 0-150 m
Drilling Diameter 90-254mm(Mud drilling)
Drilling Diameter 90-254mm(DTH Drilling)
Drill system and operation Hydraulic
Rig assembly Main engine driven
Mobility 4 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
DTH Hammer 4-6Inch
Foam pump Optional
Weight 2600 kg
Rotation&Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2250 N-m
Rotation Speed-Fast 0-110Rpm
Rotation Speed-Slower 0-55Rpm.
Head travel 2.25 meter
Pull-up capacity 7.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Power 44KW
Brand HBE
Model 4DHG
Type 4Cylinder,Naturally aspirated
Drill pipe
Drill pipe length 2000mm
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Mud pump(Optional)
Flow capacity 200 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 160 liter
Stable Jack
2 front jacks and 2 rear jacks. Hydraulic
Bore 60 mm.
Stroke 600 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 25 bar
Oil tank capacity 4 liter
Dimension
Overall length 3500 mm
Overall width 1800 mm
Overall height 1900 mm
Overall height 1901 mm
Packing& Delivery

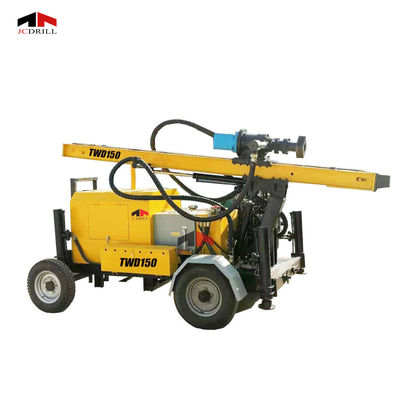

High Speed 150m Trailer Mounted Borewell Rig Machine 1
