|Model Number:||YT29A||Application:||Concrete And Rock Drilling, Mining And Quarrying|
|Power Type:||Pneumatic||Working Pressure:||0.4-0.63Mpa|
|Air Consumption:||16-40m3/min||Impact Frequency:||≥31HZ|
|No-Load Speed:||≥200r/min||Hole Angle Range:||0-360°|
|Rotary Speed:||30-60 R/min||Impact Energy:||≥65J|
pneumatic jack hammer,
air operated jack hammers

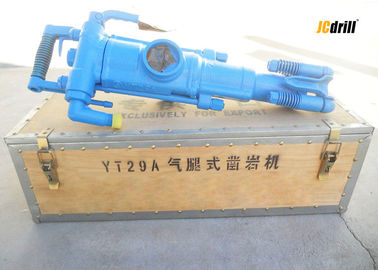

Portable Jack Hammer Pneumatic Rock Drill , High Impact Energy Air Leg Rock Drill YT29A

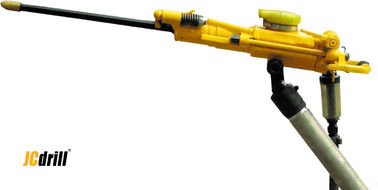

YT29A pneumatic rock drill with air leg.
YT29A Pneumatic Rock Drill is rock drilling equipment with high high impact energy, and lower air
comsumption,it is widely fitting for coal mine, railway traffic, water conservancy and so on.
YT29A Pneumatic Rock Drill have water flushing, rifle bar rotation and the pusher leg control is placed
at the back head of the rock drill. An in line lubricator is included in the delivery of each rock drill.
Together with the appropriate pusher leg.
We have a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations. They are robust but simply designed, with high impact energy and low air consumption.
This air leg pneumatic Rock Drill is widely used in metallurgy, coal industry, road construction, mining and other drilling operations.
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3. It accepts heavy duty bits
4. Reliable structure,easy and stable operation
5. Drill diam. can be from 32mm-60mm.
6. Hand-held and air legs rock drill accessible.
7. Provide the ultimate combination of performance and economy.
8. Smart,and durable.
|YT29A rock drill|
|Piston Structure Stroke||60||mm|
|Drilling air Consumption||≤88||≤65||≤52||L/s|
|Drilling Impact Frequency||≥39(||≥37||≥36||Hz|
|Air Pipe Diameter||25||mm|
|Water Pipe Diameter||13||mm|
|Appropriate drilling Hole Dia.||34~45||mm|
|Suitable for maximum hole depth||5||m|
|Bit Shank Specification||H22*108±1||mm|
