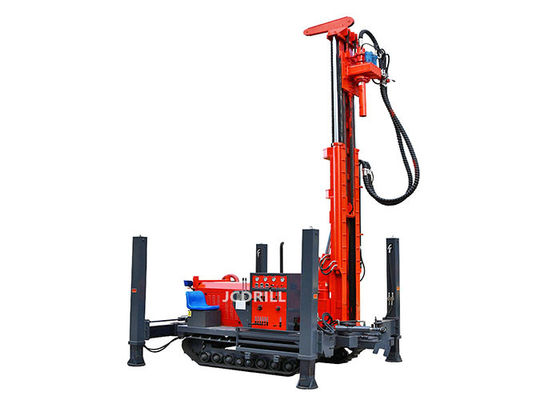

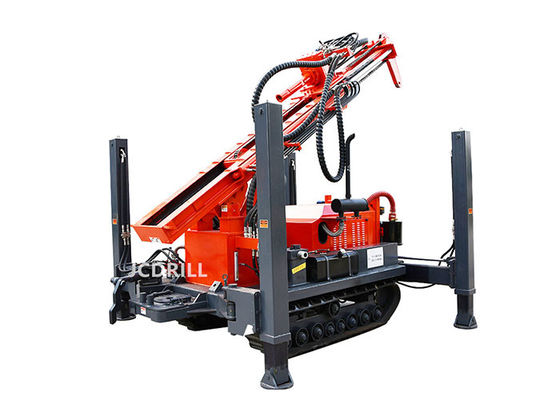

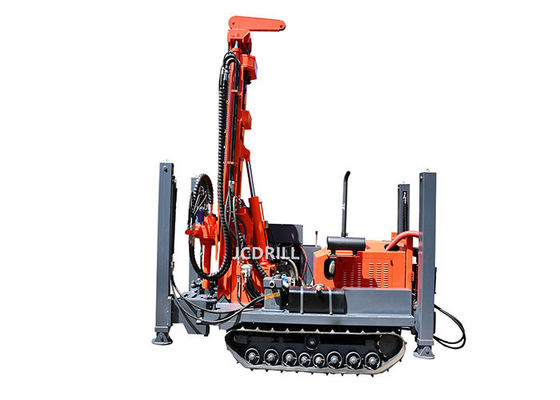

Fullly Hydraulic Rotary 90rpm Crawler Drill Machine

Fullly Hydraulic Rotary 90rpm Crawler Drill Machine
Fullly Hydraulic Rotary 90rpm Crawler Drill Machine Fullly Hydraulic Rotary 90rpm Crawler Drill Machine Fullly Hydraulic Rotary 90rpm Crawler Drill Machine

Large Image :  Fullly Hydraulic Rotary 90rpm Crawler Drill Machine

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 40HQ
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets/year
Detailed Product Description
Hole Diameter: 90-450mm Hole Depth: 200m
Rotation Torque: 4500-6500Nm Rotation Speed: 0-90rpm
Drill Pipe Diameter: 76/89/102/114mm Drill Pipe Length: 3000mm
Geology Drilled: All Kinds Drilling Type: DTH & Mud Rotary
Feed Stroke: 3400mm
High Light:

rotary crawler drill machine

,

fullly hydraulic crawler drill machine

,

90rpm crawler drill machine

Fullly Hydraulic Rotary Crawler Drill Machine CWD200

CWD200 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

Fullly Hydraulic Rotary 90rpm Crawler Drill Machine 0Fullly Hydraulic Rotary 90rpm Crawler Drill Machine 1

Specification

Geology Drilled   All kinds
Drilling Type   DTH & Mud Rotary
Drill System and Operation   Hydraulic
Hole Diameter mm Φ90—Φ450
Hole Depth m 200
Rotation Torque Nm 4500-6500
Rotation Speed rpm 0-90
Drill Pipe Diameter mm 76/89/102/114
Drill Pipe Length mm 3000
Max. Feed Speed M/min 18
Max. Lifting Speed M/min 5-20
Feed Stroke mm 3400
Max. Lifting Force Ton 14
Lifting force of Main Winch(Optional) T 4
Lifting Force of Hoist Kgs 1500
Lifting Height of Tool Winch m 6
Engine
Diesel Engine Type YUCHAI
Rated Horse Power Kw 77
Electrical System Volt 24
Compressor Required
Compressor Type Rotary Screw/Movable
Pressure Required Mpa 1.2—3.0
Air Consumption m³/min 11-35
Mud Pump(Optional)
Type   Hydrulic
Model   BW450
Stroke mm 100
Displacement L/Min 450
Discharge Pressure (Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump   Optional
Dimension
Net Weight Kgs 5400
Shipping Length mm 3950
Shipping Width mm 1700
Shipping Height mm 2150
Ground Clearance mm 300

Fullly Hydraulic Rotary 90rpm Crawler Drill Machine 2
