Full 300m Hydraulic Rotary Drilling Rig Crawler Type

Full 300m Hydraulic Rotary Drilling Rig Crawler Type
Full 300m Hydraulic Rotary Drilling Rig Crawler Type Full 300m Hydraulic Rotary Drilling Rig Crawler Type Full 300m Hydraulic Rotary Drilling Rig Crawler Type Full 300m Hydraulic Rotary Drilling Rig Crawler Type

Large Image :  Full 300m Hydraulic Rotary Drilling Rig Crawler Type

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: CWD300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: One Week
Payment Terms: L/C, T/T
Supply Ability: 2000 Sets/Year
Detailed Product Description
Condition: New Drill System: Hydraulic
Drilling Depth: 300m Drilling Diameter: 105-450mm
Rotation Torque: 4800N.M Rotation Speed: 0-115RPM
Drill Pipe Dia: 89/102/114mm Drill Pipe Length: 3000mm
Lifting Force: 12ton Diesel Engine: 70KW
Dimension: 5800x2210x2850mm Weight: 8 T
Color: Customized Drilling Method: DTH&Mud Drilling
Diesel Engine Type: YUCHAI Net Weight: 8.5T
High Light:

hydraulic rotary drilling rig crawler type

,

300m hydraulic rotary drilling rig

,

rotary crawler drilling rig

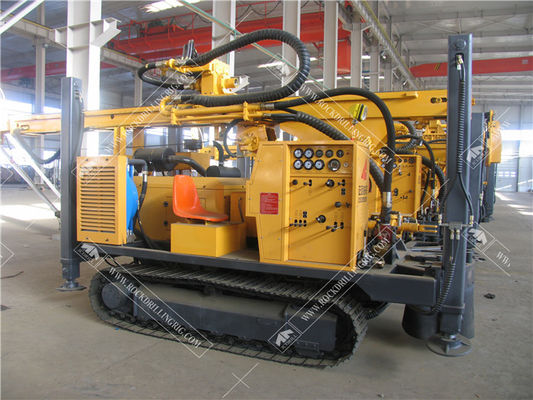

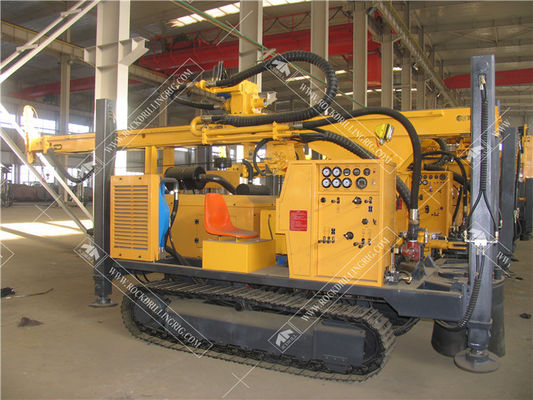

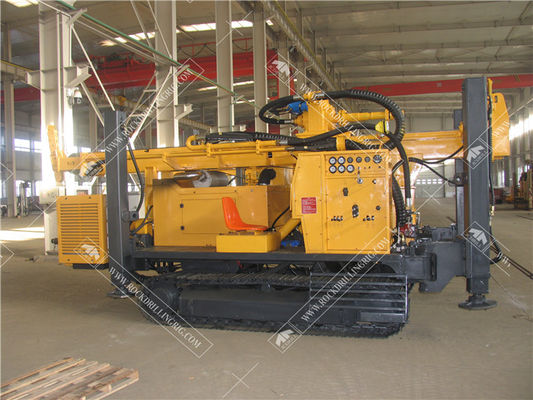

Full Hydraulic Rotary Crawler Type Water Well Drilling Machine CWD300

CWD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Full 300m Hydraulic Rotary Drilling Rig Crawler Type 0


Specification

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ105—Φ450
5 Hole Depth m 300
6 Rotation Torque N/M 6500-8500
7 Rotation Speed rpm 65-130
8 Drill pipe diameter mm 89/102/114
9 Drill pipe length mm 3000/4500
10 Max. Feed Speed M/min 0-25
11 Max. Lifting Speed M/min 5-14
12 Max.Feed Stroke mm 3600/5100
13 Max.Pull back capacity Ton 20
14 Max.Pulldown Force Ton 4
15 Lifting force of hoist T 1.5
16 Lifting height of tool winch m 40
Engine
17 Diesel Engine type YUCHAI
18 Rated Horse power Kw 91
19 Electrical System Volt 24
Compressor required(Optional)
20 Compressor Type Rotary Screw/Movable
21 Pressure Required Mpa 1.05—4.5
22 Air consumption m³/min 16—60
Mud Pump(Optional)
23 Type   Hydrulic
24 Model   BW450
25 Stroke mm 110
26 Displacement L/Min 450
27 Discharge pressure (Mpa) Mpa 2-5
28 Suction tube diameter mm 76
29 Discharge pipe diameter mm 51
Dimension
30 Net Weight T 8.5
31 Shipping Length mm 4800/6300
32 Shipping Width mm 2000
33 Shipping Height mm 2450
34 Ground Clearance mm 320

Application
Full 300m Hydraulic Rotary Drilling Rig Crawler Type 1
Full 300m Hydraulic Rotary Drilling Rig Crawler Type 2

Service

Full 300m Hydraulic Rotary Drilling Rig Crawler Type 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series,

in this system, technology date and problem solve solution and preventive measures will be provided in any

maintain project, all the spare parts will be used in new OEM products with installation instructions, packing

list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order

confirmation, last for the working life of the equipment
