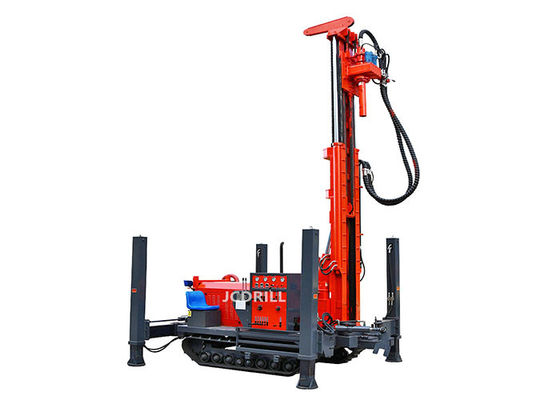

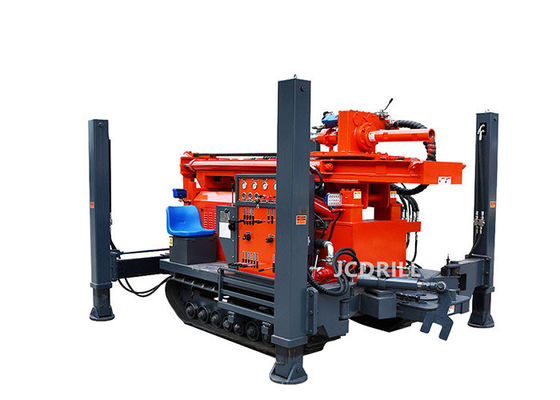

Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump

Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump
Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump

Large Image :  Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 40HQ
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets/year
Detailed Product Description
Hole Diameter: 90-450mm Hole Depth: 200m
Rotation Torque: 4500-6500Nm Rotation Speed: 0-90rpm
Drill Pipe Diameter: 76/89/102/114mm Drill Pipe Length: 3000mm
Geology Drilled: All Kinds Drilling Type: DTH & Mud Rotary
Feed Stroke: 3400mm Compressor Type: Rotary Screw/Movable
Engine Type: YUCHAI Mud Pump: BW450
High Light:

hydraulic track mounted drill rig

,

dth track mounted drill rig

,

200m track mounted drill rig

DTH Hydraulic Track Mounted Drill Rig for Sale with Mud Pump

CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump 0Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump 1

Specification

Geology Drilled   All kinds
Drilling Type   DTH & Mud Rotary
Drill System and Operation   Hydraulic
Hole Diameter mm Φ90—Φ450
Hole Depth m 200
Rotation Torque Nm 4500-6500
Rotation Speed rpm 0-90
Drill Pipe Diameter mm 76/89/102/114
Drill Pipe Length mm 3000
Max. Feed Speed M/min 18
Max. Lifting Speed M/min 5-20
Feed Stroke mm 3400
Max. Lifting Force Ton 14
Lifting force of Main Winch(Optional) T 4
Lifting Force of Hoist Kgs 1500
Lifting Height of Tool Winch m 6
Engine
Diesel Engine Type YUCHAI
Rated Horse Power Kw 77
Electrical System Volt 24
Compressor Required
Compressor Type Rotary Screw/Movable
Pressure Required Mpa 1.2—3.0
Air Consumption m³/min 11-35
Mud Pump(Optional)
Type   Hydrulic
Model   BW450
Stroke mm 100
Displacement L/Min 450
Discharge Pressure (Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump   Optional
Dimension
Net Weight Kgs 5400
Shipping Length mm 3950
Shipping Width mm 1700
Shipping Height mm 2150
Ground Clearance mm 300

Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump 2Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump 3

Characteristics

1.The drilling rig can use air DTH Hammer drilling and mud drilling.

2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4.It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5.The power of drilling rig comes from a Yunnei 60kw engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6.The rotary head,have two gear,rotation speed is 0-90rpm stepless adjustment and the rotary torque is 4500-6500Nm.

7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.

Dth 200m Hydraulic Track Mounted Drill Rig With Mud Pump 4
