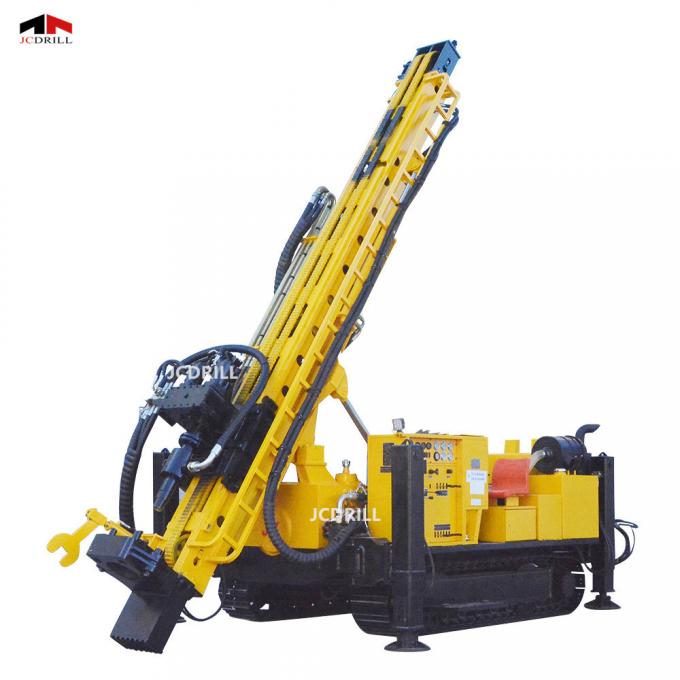

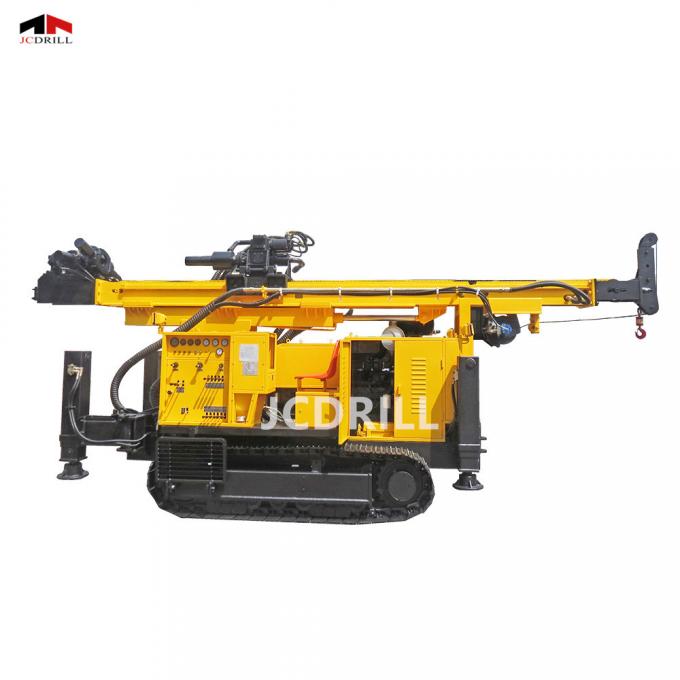

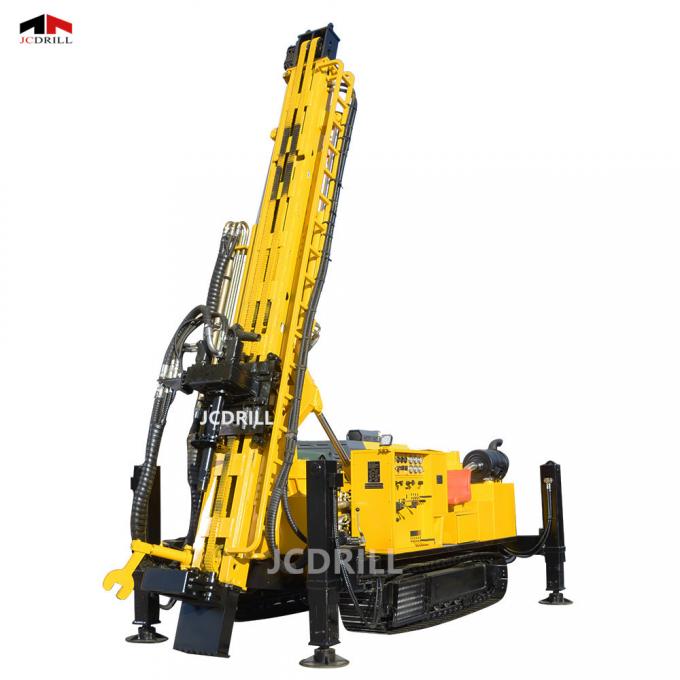

CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine

CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine
CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine
video play

Large Image :  CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CSD300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year
Detailed Product Description
Model Number: CSD300 Dimension: 10600*2400*3050mm
Driling Diameter: 105-350mm Drilling Depth: MAX.300
Weight: 20000kg Power Type: Diesel
Power: 112KW
High Light:

diesel power trailer mounted drilling rig

,

300m trailer mounted drill rig

,

300m trailer mounted drilling rig

Product Overview



CSD300 Truck Mounted Water Well Drilling Rig
CSD300 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD300 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
FEATURES AT A GLANCE

COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine 0
PRODUCT SPECIFICATIONS
No.
Item


1
Geology Drilled

All Kinds
2
Drilling Type

DTH & Mud Rotary
3
Drill System and Operation

Hydraulic
4
Hole Diameter
mm
140-450
5
Hole Depth
m
300
6
Rotation Torque
Nm
4800-6500
7
Rotation Speed
rpm
60-120
8
Drill Pipe Diameter
mm
89/114
9
Drill Pipe Length
mm
4000/4500
10
Max.Push Down Capacity
T
5
11
Max.Pull Up Capacity
T
16
Winch
12
Lifting Force of Main Winch(Optional)
T
4
13
Lifting Force of Hoist
T
1.5
14
Length of Steel Wire Rope(Tool Winch)
m
100
15
Lifting Height of Tool Winch
m
8
Engine
16
Diesel Engine Type

YUCHAI
17
Rated Horse Power
Kw
70
18
Electrical System
Volt
24
Compressor Required
19
Compressor Type

Rotary Screw/Movable
20
Pressure Required
Mpa
1.05-4.5
21
Air Consumption
M3/min
16-60
Truck
22
Manufacturer

SINOTRUCK HOWO
23
Model

ZZ1257M5847C
24
Engine

WD615.93C
25
Rated Horse Power
Hp
290
26
Discharge Standard

EU-2
27
Drive Type

6*4
28
Max.Speed
Km/h
102.9
29
Steering Wheel

Left/Right(Optioanl)
Mud Pump
30
Power Type

Diesel Engine
31
Model

BW450
32
Stroke
mm
110
33
Displacement
L/Min
450
34
Discharge Pressure
Mpa
5
Dimension
35
Net Weight
T
20
36
Shipping Length
mm
11200
37
Shipping Width
mm
2500
38
Shipping Height
mm
3200
39
Working Size(L*W*H)
mm
11000*2480*7147
Successful Project

CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine 1                 CSD300 to Commeroon                                        CSD600A to Chile                                   CSD600 to Uruguay
SALES AND SERVICE NETWORK

CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine 2
PRODUCT CONFIGURATION


 CSD300 Diesel Power Trailer Mounted Drilling Rig Hydraulic Machine 3

                    Mud Pump                                                  Operation Panel                                           Radiator

FAQ
Q: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q: Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
