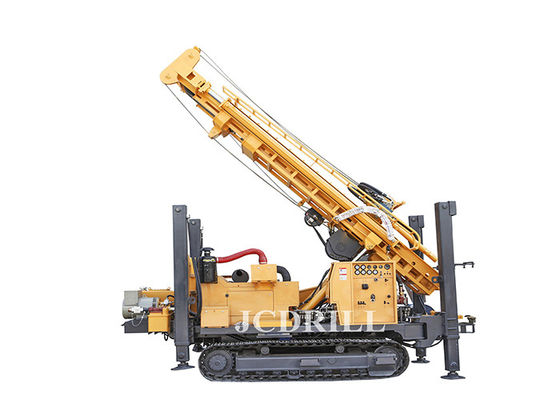

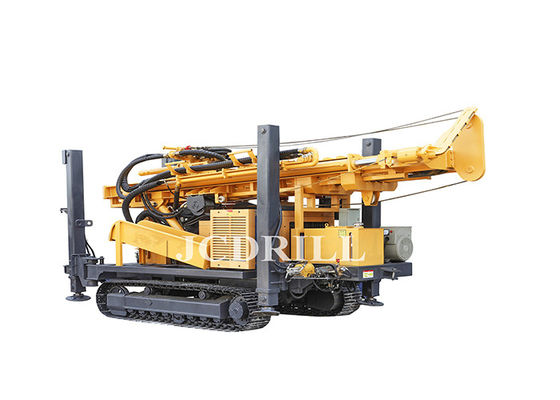

600meters Rock And Water Well Borehole Drilling Rig Machine

600meters Rock And Water Well Borehole Drilling Rig Machine
600meters Rock And Water Well Borehole Drilling Rig Machine 600meters Rock And Water Well Borehole Drilling Rig Machine

Large Image :  600meters Rock And Water Well Borehole Drilling Rig Machine

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD600

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year
Detailed Product Description
Model Number: CWD600 Drilling Depth: 0-600m
Drilling Diameter: 90-450mm Drill Pipe Length: 4.5m-6m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-100rpm Engine Power: 132kw
Drill Pipe: 89/102/114mm Mud Pump: BW250/BW160
Warranty: 1year Engine Brand: Cummins
Gradeability: 21° Pull Back Capacity: 32ton
High Light:

water well borehole drilling machine

,

rock borehole drilling rig

,

600meters borehole drilling rig

CWD600 Rock and Water Well Drilling Machine for Drilling Water Well

The efficiency of crawler type water well drilling rig CWD600 is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.

600meters Rock And Water Well Borehole Drilling Rig Machine 0

Specification
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140—Φ450
5 Hole Depth m 600
6 Rotation Torque Nm 6500 1st Gear
13000 2nd Ger
7 Rotation Speed rpm 0-80 1st Gear
0-160 2nd Ger
8 Drill pipe diameter mm 89/102/114
9 Drill pipe length mm 4000/4500
10 Axial pressure T 10
Winch
11 Max. Lifting force T 32
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type CUMMINS
17 Rated Horse power Kw 132
18 Electrical System 24 Volt
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.05—6.9
21 Air consumption m³/min 16—96
Mud Pump(Optional)
30 Type   Hydrulic
31 Model   BW450
32 Stroke mm 110
33 Displacement L/Min 450
34 Discharge pressure (Mpa) Mpa 2-3
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Dimension
38 Net Weight T 15
39 Shipping Length mm 8500
40 Shipping Width mm 2300
41 Shipping Height mm 3300
42 Ground Clearance mm 300

Application

600meters Rock And Water Well Borehole Drilling Rig Machine 1
Packing& Delivery

600meters Rock And Water Well Borehole Drilling Rig Machine 2

Service

600meters Rock And Water Well Borehole Drilling Rig Machine 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
