300meter Borehole Portable Water Well Drilling Rig Trailer Mounted

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  300meter Borehole Portable Water Well Drilling Rig Trailer Mounted

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year
Detailed Product Description
Model Number: TD300 Dimension: 5800*2210*2850m
Driling Diameter: 105-350mm Engine: CMS
Drilling Depth: MAX.300m Weight: 6100KG
High Light:

borehole portable water well drilling rig

,

300meter portable water well drilling rig

,

300meter trailer mounted drilling rig

TWD300 Trailer Mounted Water Well Drilling Rig
TWD300 Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
TWD300 trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
TWD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Product Parameters

No.Item
1Geology Drilled All Kinds
2Drilling Type DTH & Mud Rotary
3Drill System and Operation Hydraulic
4Hole Diametermm105-350mm
5Hole Depthm300
6Rotation TorqueNm7500
7Rotation Speedrpm0-160
8Drill Pipe Diametermm89/114
9Drill Pipe Lengthmm3000
10Most.Feed LengthM/min18
11Most.Lifting SpeedM/min5-20
12Feed Strokemm3400
13Most.Lifting ForceN120000
Winch
14Lifting Force of Main Winch(Optional)T4
15Lifting Force of HoistT1.5
16Lifting Height of Tool Winchm6
Engine
17Diesel Engine Type CUMMINS
18Rated Horse PowerKw92
19Electrical SystemVolt24
Compressor Required
20Compressor Type Rotary Screw/Movable
21Pressure RequiredMpa1.2-3.5
22Air ConsumptionM3/min16-40
Mud Pump
23Power Type Hydraulic
24Model BW450
25Strokemm100
26DisplacementL/Min250
27Discharge PressureMpa2.5
28Suction Tube Diametermm85
29Discharge Pipe Diametermm51
30Foam Pump Optional
Dimension
31Net WeightKG6100
32Shipping Lengthmm5800
33Shipping Widthmm2210
34Shipping Heightmm2850
35Ground Clearancemm300
36Volume of Flowmm200


Product Configuration
300meter Borehole Portable Water Well Drilling Rig Trailer Mounted 0
300meter Borehole Portable Water Well Drilling Rig Trailer Mounted 1
300meter Borehole Portable Water Well Drilling Rig Trailer Mounted 2
300meter Borehole Portable Water Well Drilling Rig Trailer Mounted 3
               Rotary Head                             4-wheel Trailer Chassis            Full Hydraulic Control Panel
300meter Borehole Portable Water Well Drilling Rig Trailer Mounted 4
            Drill PipeMud                                       Pump                                          Drilling Tower

Product Features
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Yuchai engine,93kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and160rpm step less adjustment and the rotary torque is 6900Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13. Competitive in price, low cost of maintain.

Product Loading
FAQ
Q: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q: Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
RELATED PRODUCTS

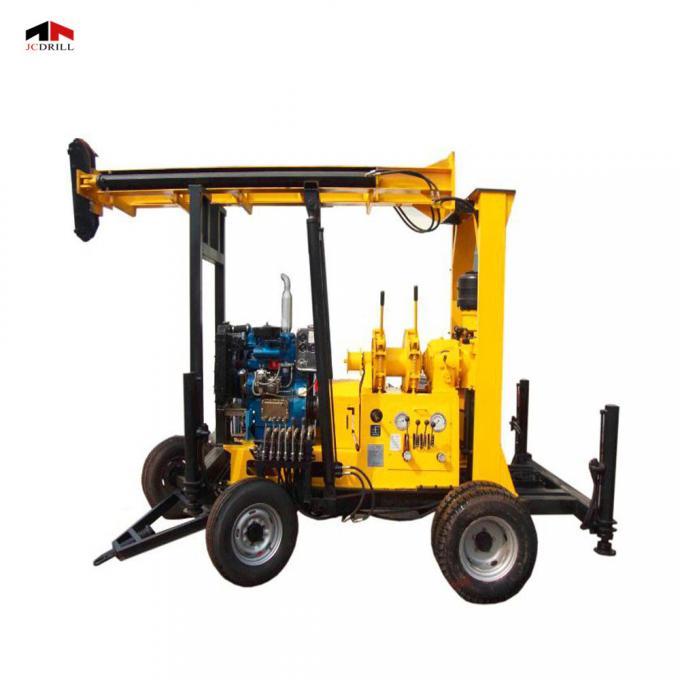

180m Depth borehole well water well drilling rig for sales180m Depth borehole well water well drilling rig for sales180m Depth borehole well water well drilling rig for sales

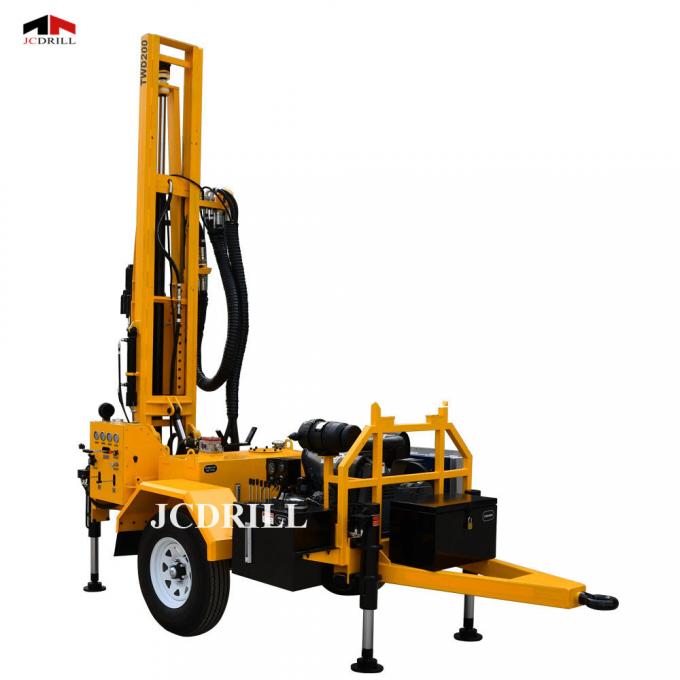

TWD200 Trailer Mounted
200m Water Well Drillling Rig

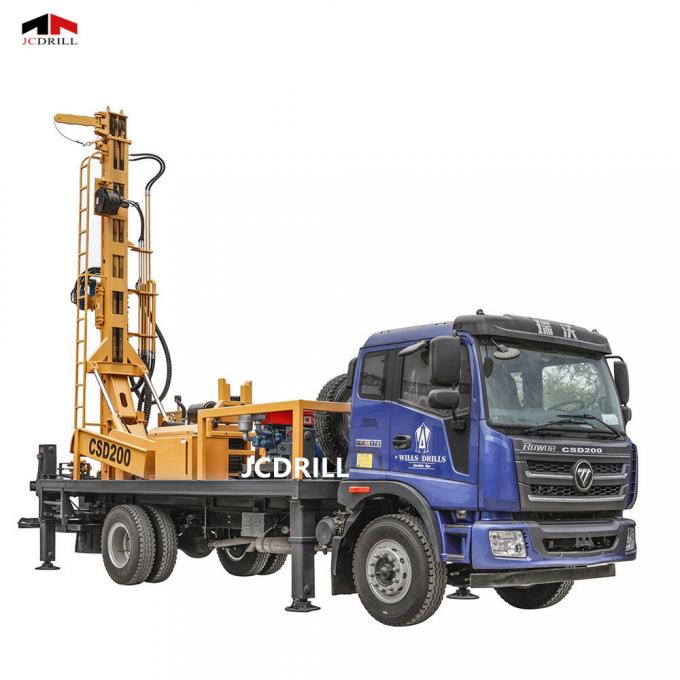

CSD200 Truck Mounted
