|Type:||Heavy Duty Truck||Drilling Depth:||1500m|
|Drilling Diameter:||140-450mm||Drilling Method:||Mud Rotary And Air DTH|
|Drill Pipe Length:||6m /4.5m||Drill Pipe Diameter:||102 /114/127mm|
|Truck Chassis:||8 X 4 SINOTRUK HOWO||Engine:||CUMMINS|
|Warranty:||One Year||Power Type:||Diesel|
|Truck Color:||White||Usage:||Water Well Drilling Rig|
1500m water well drilling rig machine,
dth water well drilling rig machine,
140mm dia dth drilling rig

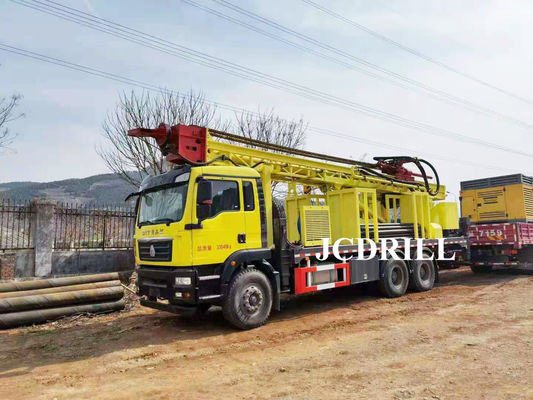

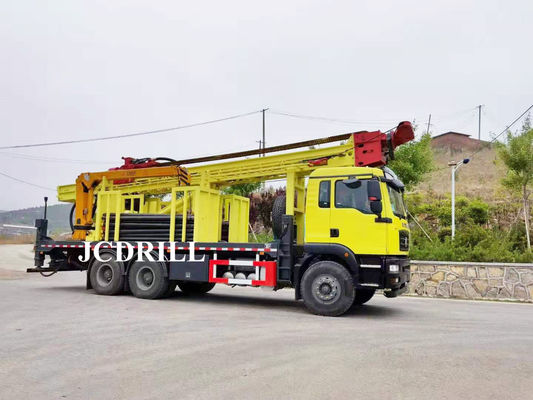

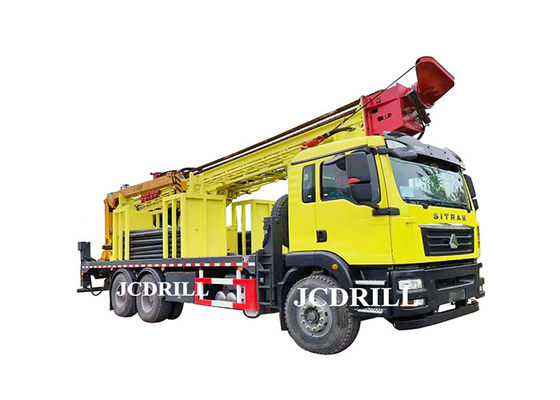

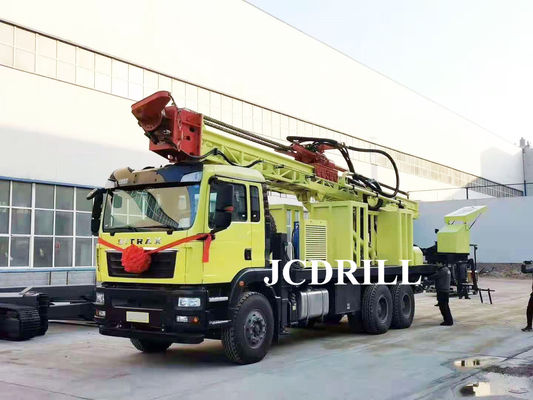

1500 Meters Deep Water Well Drilling Rig Powerful Truck Mounted Borehole Drilling Machine
CSD1500 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulicwater well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainlyused for water well in industry and agriculture, national defense building foundation, geological exploration,geothermic well and other foundation working, it is popular at home and abroad.
|1||Geology drilled||All kinds|
|2||Drilling Type||DTH & Mud Rotary|
|3||Drill system and operation||Hydraulic|
|6||Rotation Torque||Nm||9600 1st Gear|
|24500 2nd Gear|
|7||Rotation Speed||rpm||0-80 1st Gear|
|0-110 2nd Gear|
|8||Drill pipe diameter||mm||76/89/102/114|
|9||Drill pipe length||mm||6000/4500|
|10||Max. Lifting force||N||12000|
|11||Max. Feed Speed||m/min||18|
|12||Lifting force of Main winch(Optional)||T||4|
|13||Lifting force of hoist||T||2.5|
|14||Length of steel wire rope(tool winch)||m||100|
|15||Lifting height of tool winch||m||8|
|16||Diesel Engine type||CUMMINS|
|17||Rated Horse power||Kw||132|
|19||Compressor Type||Rotary Screw/Movable|
|25||Rated Horse power||KW||245|
|27||Drive type||8 * 4|
|29||Steering wheel||left /right (optional)|
|34||Discharge pressure (Mpa)||Mpa||2-5|
|35||Suction tube diameter||mm||89|
|36||Discharge pipe diameter||mm||51|
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system,
the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW1500/12 mud pump
which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable
5. The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement
high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and110rpm stepless adjustment and the rotary torque
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on theweathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydrauliccontrolled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T,rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boomlift, guide dumping.
13. Competitive in price, low cost of maintain.
